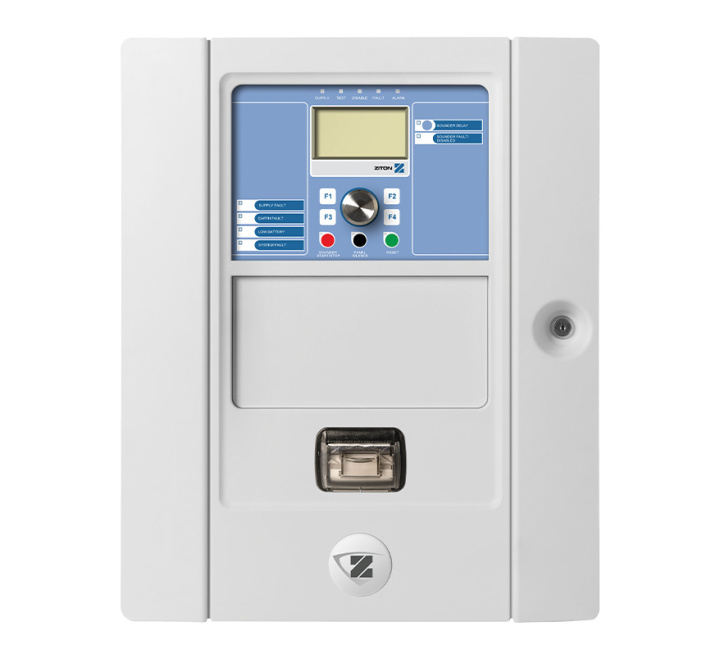

Ziton ZP2-F2-PRT-99 Addressable Fire Panel with Printer - 2 Loop
SKU
ZP2-F2-PRT-99
£996.92 £830.77
Ziton ZP2-F2-PRT-99 Addressable Fire Panel with Printer - 2 Loop (ZP2-F2-PRT-99 )
The 2-loop ZP2-F2-PRT-99 Ziton Addressable fire panel with printer is a good choice for small to mid-sized addressable applications. Its main controls are clearly yet discreetly highlighted with the focus on the centrally located Jog Dial. With the addressable detection and a full line of easily configured option cards and modules, USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits both building owners and life safety system installers.
| Key Features |
|---|
| > Thermal printer with paper replacement from the front > 2 loops expandable to 4 with up to 512 zones and 300 output groups > Up to 40 LED Zone indicators for Fire and Fault with generous text space > Auto configuration, setup wizards and default regional setup modes > Ethernet port with TCP/IP for remote diagnostics, maintenance and programming > EN54 compliant graphical LCD with icons and up to 256 zones > Jog Dail with 4 soft buttons for simple and intuitive user control > Pleasing design with special paintable synthetic door > Easy removable door and chassis for quick and clean installation > All pluggable connectors > 3 USB ports with memory stick support and RS232 for printer support > Email notification for events directly from the panel (4 user accounts) > Auxiliary 24VDC supply output with reset support > 3 operator level menu structure (20 usernames and passwords) > History log memory for 9999 events > Up to 72 hours standby time and 30 minutes alarm > Compatible with the new loop powered sounders/beacons and base sounders and the 2000 series detectors with replaceable optical chamber |
| Manufacturer | Ziton |
|---|---|
| MPN | ZP2-F2-PRT-99 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | ZP2-F2-PRT-99 |
| Description: | Ziton ZP2-F2-PRT-99 Addressable Fire Panel with Printer - 2 Loop |
| Dimensions: | W:450mm x H:550mm x D:172mm |
| Form factor: | Large |
| Max. system capacity: | up to 32512 devices |
| Network size (nodes): | up to 64 |
| Power supply type: | VAC |
| Operating voltage: | 110 /230 VAC (+10%/-15%) |
| Current consumption: | Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A |
| Max. loop capacity: | 4 |
| Max. zone capacity: | up to 512 |
| Standby battery capacity: | Max. 2 x 12V/18Ah (use supplied cables) |
| Mains frequency: | 50 / 60 Hz (±5%) |
| Mains supply fuse rating: | 2 / 4A |
| Mains cable type: | 3 x 1.5 mm² (live, neutral, earth) |
| Outputs: | |
| Programmable supervised: | 4, 750mA / 19.5-28VDC (24VDC nominal) |
| General Fire + Fault supervised: | 2, 350mA / 19.5-28VDC (24 VDC nominal) |
| General Fire + Fault relay: | 2 |
| Aux: | 1 resetable, 500mA / 19.5-28VDC (24VDC nominal) |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| End of Line resistor: | 15kohm |
| Inputs: | |
| Programmable: | 2 |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| End of Line resistor: | 15kohm |
| Maximum Load: | 150 mA |
| Loops: | |
| Outputs: | 2, 250 mA / 29VDC (29VDC to 36VDC ) |
| Cable length: | 56ohm / 1µF max. 2 km |
| Cable type: | Recommended 2 core 1.5 mm² twisted pair |
| Colour: | Grey (RAL7035) |
| Mounting type: | Surface mount |
| Cable entries: | 18 (20mm) / 2 (20mm) / 2 removable plates (Top/Bottom/Back) |
| Operating temperature: | -8° to +42°C |
| Storage temperature: | -10 to +50°C |
| Relative humidity: | 95% max. non condensing |
| IP rating: | IP30: for indoor use only |
| Compliancy: | BS5839-1, CPD, LPCB, NBNS21-100, NEN2535, RoHS, WEEE |
| Certification: | EN54-13, EN54-2, EN54-21, EN54-4, VdS |
| Weight: | 10.1 kg (7.4kg without battery) |
