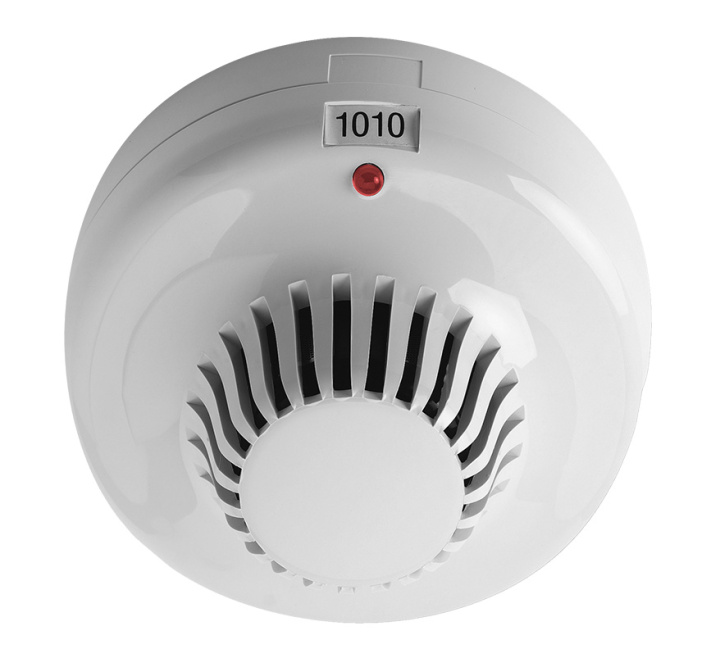

Ziton ZP7 Series Multi-sensor Detector (optical/heat), White
- Buy 10 for £42.48 £35.40 each and save 2%
- Buy 20 for £41.82 £34.85 each and save 3%
- Buy 50 for £41.15 £34.29 each and save 5%
The Ziton ZX832-3P is a polar white, addressable optical/heat multi criteria detector for Ziton addressable fire alarm systems. Fuzzy logic software using multi-criteria sensing form the basis of this advanced optical and heat detector.
The detector consists of integrated high sensitivity smoke and thermal sensors. The system combines the dynamic results of rates of change patterns and absolute levels of smoke and heat, to identify real fire criteria. Selectable software algorithms allow the response to be matched to each particular hazard. Algorithms can change for day/night operation.
Units are low-profile design and plug into either a surface or a semi-recessed base. An automatic facility is provided to lock the detector into its base, requiring a special tool to remove it. A built-in LED illuminates when the detector is in an alarm condition.
An advanced self test facility excites the smoke chamber as though smoke were present and fully tests the complete sensor as well as communication with the panel.
Suited to applications requiring the highest level of alarm integrity. Each detector can protect and area up to 100m², subject to room and ceiling design and local codes. If the detector is intended to be used in thermal-only mode at certain times, then maximum coverage area is 50m².
Up to 127 devices may be connected to each ZP7 address loop. The system automatically compensates each sensor individually for calibration changes caused by dirt, temperature, humidity, voltage fluctuations and long term contamination.
| Key Features |
|---|
| > Polar White > Multi-criteria fire sensing > Enhanced detection certainty > False alarm discrimination > Fuzzy logic algorithms > User selectable algorithms > Microprocessor based > EN54:5 and 7 approved, and CPR certified |
| Manufacturer | Ziton |
|---|---|
| MPN | ZX832-3P |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | ZX832-3P |
| Description: | Ziton ZP7 Series addressable multisensor (optical / heat) |
| Dimensions: | 106 x 58mm |
| Status indication: | Alarm LED (red) |
| Addressing method: | DIP Switches |
| Compatibility: | ZP7 addressable systems |
| Power supply type: | Loop powered |
| Operating voltage: | 19.5 to 20.5 V 4 V (Max. line loss) |
| Current consumption: | 600 μA (Quiescent) 700 μA (Alarm) |
| Detection: | Principle: Smoke & heat Sensitivity: Configurable Coverage area: 100m² (Optical), 50m² (Heat) |
| Output: | Quantity: 1 Type / rating: Remote indicator Remote alarm output: Yes |
| Vandal proof: | No |
| Operating temperature: | -10 to +85°C |
| Storage temperature: | -20 to +70°C |
| Relative humidity: | 20 to 95% |
| IP rating: | IP32, indoor |
| Material: | Moulded ABS |
| Mounting: | Base mount, Ceiling mount, Recessed mount |
| Compatible products: | 11510-ZT: ZPL1-1 address label 1001-1127 11520: ZPL1-2 Add.Label 2001-2127 11530-ZT: ZPL1-3 address label 3001-3127 11540-ZT: ZPL1-4 address label 4001-4127 ZP7-IB-P: Isolator base for ZP7 ZX8 detector. PW ZP7-IB2-P: ZP7 Series point detector base with isolator ZP7-RB1-P: ZP7 Series point detector recess mount base ZP7-SB1-P: ZP7 Series point detector base 122301: Z-RL3 Remote LED w/ "Fire" Text, Square Z-RL4: Remote LED Indicator - Square |
| Colour: | Signal white (RAL 9003) |
| Regulatory: | CE, REACH, RoHS 3, WEEE compliancy CPR, EN54-5, EN54-7 certified |
| Weight: | 105g (excluding base) |
