- Buy 10 for £21.41 £17.84 each and save 2%
- Buy 20 for £21.07 £17.56 each and save 3%
- Buy 50 for £20.74 £17.28 each and save 5%

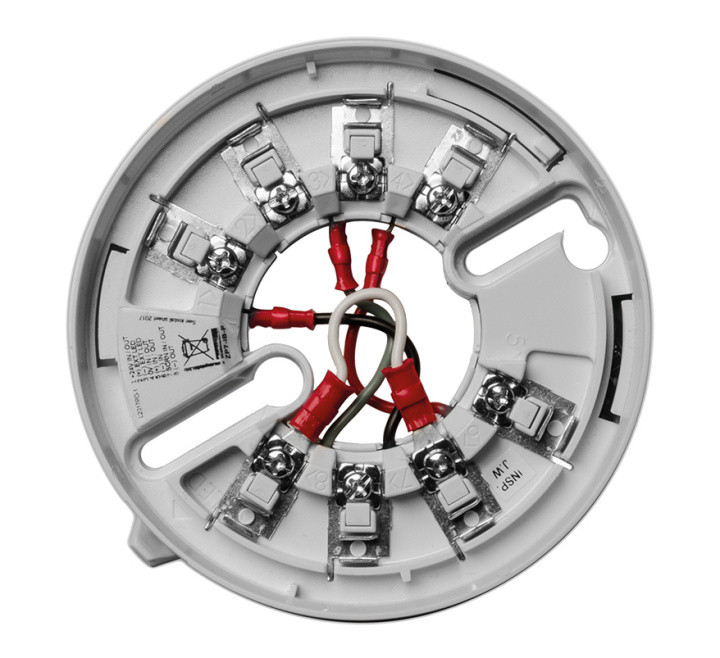

The Ziton ZP7-IB2-P isolator base protects Ziton addressable fire detection loops against short circuits. Up to 127 base isolators may be connected to each loop when this isolator is used in enhanced mode. Supports the old operating modes and are therefore backwards compatible with legacy isolators.
The ZP7-IB2-P allows the detector to be removed or replaced without disconnecting loop wiring from the detector. Intended for use on Class-A, return loop wiring configurations. By regulation, a zone of no more than 32 fire alarm devices must be located between isolators. In the event of a short circuit fault, the isolators on either side of the fault disconnects the section of cable between them. Devices inside the zone get disconnected, but devices outside the disconnected zone continue to operate normally. Meets the recommendations for loop monitoring in local codes like BS5839-1. It is possible to ensure that no devices are disconnected from the isolated section of cable. Every detector may be fitted with an isolator base, ensuring maximal device operation even in the event of a cable short circuit.
Adding a ZP7-IB2-P isolator base does not affect device addressing for that loop, as they require no addressing. A selectable lock facility is provided to lock the detector into the base and thereby preventing removal without a special tool. Situated on the white base moulding, a yellow LED indicator flashes when the isolator is activated.
Key Features |
---|
> Provides short circuit loop protection for up to 127 devices on the loop > LED indication of isolation activation > Optional base lock facility > Complies to the recommendation of BS5839-1 > Backwards compatible with legacy base and stand alone isolators |
Manufacturer | Ziton |
---|---|
MPN | ZP7-IB2-P |
Write Your Own Review
![Loading...](https://www.safefiredirect.co.uk/static/version1719466362/frontend/Alothemes/electro2s/en_GB/MageArray_ProductQuestions/images/loader.gif)
Sort By:
No questions yet. Be the first to ask the question!
Code: | ZP7-IB2-P |
Description: | Ziton ZP7 Series point detector base with isolator |
Dimensions: | Dia:109mm x H:23mm |
Status indication: | Alarm LED (yellow) |
Compatibility: | All ZP7 addressable systems |
Alarm levels: | Configurable |
Connectivity: | 2-wire loop |
Addressing method: | No addressing required |
Power supply type: | Loop powered |
Cable specification: | Class-A return loop (loop resistance <75 Ω) |
No. of cable cores: | 2 |
Terminals: | 7 |
Operating voltage: | 16 to 20 VDC |
Current consumption: | 180 µA (quiescent) 230 µA (activated - legacy mode) 4 mA (activated - enhanced mode) |
Detection monitoring: | Short circuit |
Isolation: | Type: Negative line break Quantity per loop: ≤16 (legacy mode); ≤127 (enhanced mode) Series resistance: <0.060 Ω Impedance requirements: <16 Ω (between panel and first isolator) <16 Ω (between adjacent isolators) <16 devices between adjacent isolators |
Vandal proof: | No |
Operating temperature: | -10 to +55°C |
Storage temperature: | -10 to +55°C |
Relative humidity: | 10 to 95% non-condensing |
IP rating: | IP21, Indoor |
Mounting type: | Surface |
Cable entries: | 1 |
Colour: | Polar White |
Material: | Moulded thermoplastic |
Compatible products: | Z-AUXD-2P: Deep base mounting, polar white ZP720-3P: ZP Series addressable heat detector ZP720-2P: ZP7 Series addressable optical detector ZP732-2P: ZP7 Series Addressable Dual Detector (Optical & Heat) , Polar White ZX832-3P: ZP7 Series addressable multisensor (optical / heat) ZP755-COV-P: ZP7 Series Detector Base Cover (Polar White) |
Regulatory: | CE, REACH, RoHS 2, WEEE compliant EN54-17, CPR certified |
Weight: | 79g |
