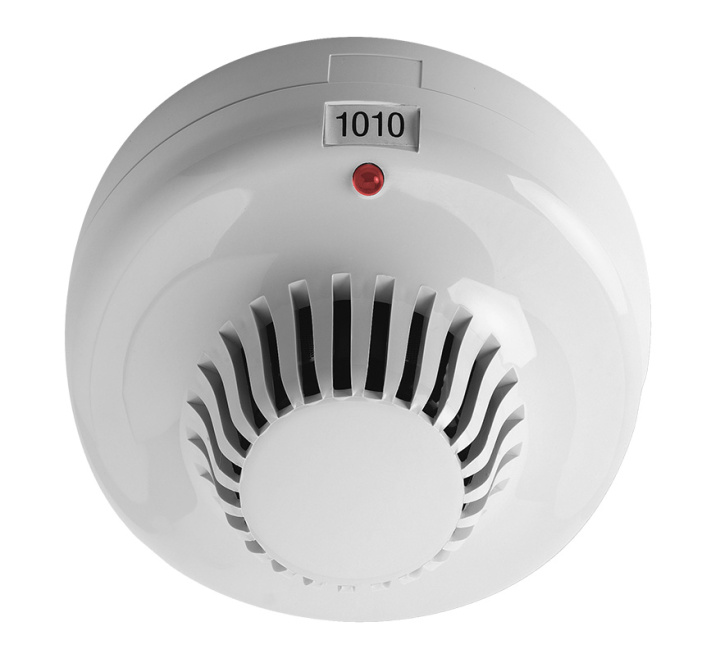

Ziton Combination Sensor Detector (optical & heat), White
- Buy 10 for £38.59 £32.16 each and save 2%
- Buy 20 for £37.99 £31.66 each and save 3%
- Buy 50 for £37.39 £31.16 each and save 5%
The Ziton ZP732-2P polar white dual detector combines optical smoke sensing and thermal monitoring to provide a warning of fire. Individual software monitoring of each element measures smoke levels, in addition to temperature rates of rise. Smoke sensing can be isolated for areas where ambient smoke may exist at certain times of the day, or used on a day / night basis in premises where heat only is required whilst the building is occupied.
Temperature response meets the requirements of EN54 Part 5 (Class A1 and A2), with smoke sensitivity complying with EN54 Part 7 and test procedure CEA4021. Several international approval bodies have approved this detector.
The smoke element is regularly recalibrated by the panel for contamination and constant sensitivity. Self test and selectable alarm verification are all provided automatically by the ZP control panel software. Up to 127 sensing devices may be connected to each of the control panel loops. All loop devices incorporate switch settings enabling them to be assigned a unique address, which is polled by the panel every 2 seconds.
The low profile moulding makes the unit ideal for both commercial and industrial interiors. A red LED indicator, situated on the sensor moulding, flashes to indicate when the unit is in alarm. For ease of removal, these detectors plug into a range of base units by a twist and lock action. A site-selectable option is provided to lock the sensor into its base. Once applied, the unit may only be removed by means of a special tool.
Space for address labels is provided on detector and base mouldings, ensuring that units are replaced in their correct location. The address numbers can be identified from floor level.
| Key Features |
|---|
| > Senses both smoke and heat > Heat only facility > Smoke element complies with EN54 Part 7 and CEA4021 > Heat element complies with EN54 Part 5 Class A1 and A2 > Analogue sensing - reduces false and unwanted alarms > Addressable - system knows the status and location of every detector |
| Manufacturer | Ziton |
|---|---|
| MPN | ZP732-2P |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | ZP732-2P |
| Description: | Ziton ZP7 Series Addressable Dual Detector (Optical & Heat) , Polar White |
| Dimensions: | Dia:106mm x H:58mm |
| Compatibility: | ZP7 Series systems |
| Connectivity: | 2 Core loop or spur & remote indicator |
| Operating voltage: | Loop 19.5 to 20.5 V (Loop powered) 4 V (Max. line loss) |
| Current consumption: | <600 μA (Quiescent) <700 μA (Active) |
| Detection: | Principle: Photo electric light scatter or heat Monitoring: Device type, Open circuit, Presence, Short circuit Coverage area: 100 m² (Optical), 50 m² (Heat) |
| Output: | Quantity: 1 Remote alarm output: Yes |
| Vandal proof: | No |
| Addressing method: | 7 way dipswitch |
| Operating temperature: | -10 to +85°C |
| Storage temperature: | -20 to +70°C |
| Relative humidity: | 20 to 95% (non-condensing) |
| IP rating: | IP32, indoor |
| Regulatory: | CPR, EN54-3 certification |
| Mounting type: | Base, Plugs into surface or semi-recessed base |
| Colour: | Polar white |
| Compatible products: | 11510-ZT: ZPL1-1 address label 1001-1127 11520: ZPL1-2 Add.Label 2001-2127 11530-ZT: ZPL1-3 address label 3001-3127 11540-ZT: ZPL1-4 address label 4001-4127 ZP7-IB-P: Isolator base for ZP7 ZX8 detector. PW ZP7-IB2-P: ZP7 Series point detector base with isolator ZP7-RB1-P: ZP7 Series point detector recess mount base ZP7-SB1-P: ZP7 Series point detector base 122301: Z-RL3 Remote LED w/ "Fire" Text, Square Z-RL4: Remote LED Indicator - Square |
| Material: | Moulded ABS |
| Regulatory: | CE, REACH, RoHS 2, WEEE compliant CPR, EN54-5, EN54-7, EEC89/336 |
| Weight: | 105g (excl. base) |
