SKU
PT4-05-12V
£244.61 £203.84

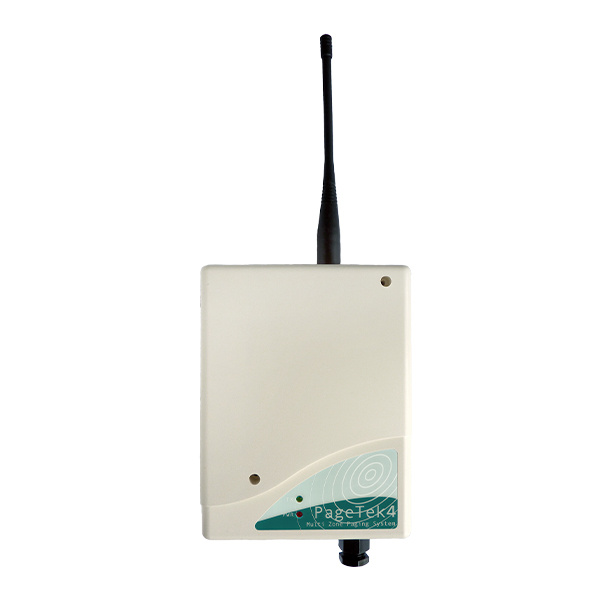

Scope PageTek 4 12V 5 Zone Paging Transmitter with Aerial (PT4-05-12V)
Scope PageTek 4 5 Zone paging transmitter (PT4-05-12V) is a 12V DC powered transmitter which provides 5 programmable zone inputs which, when triggered, automatically send the active zone message to portable or fixed pagers. This message can be repeated at predetermined intervals and a secondary message can be sent when the zone returns to its inactive state if required.
Multiple transmitters can be deployed at various locations all signalling to the same pager/pager groups.
Regular ‘In Service’ calls can be automatically sent to the receiving devices which can indicate ‘No Service’ on the pagers, or trigger a ‘fault’ zone on fixed receivers if the calls are not received. This gives the end-user confidence that the system is operating properly.
For advanced users who wish to program the unit themselves, a Programming Kit can be purchased. This consists of Windows based application software and a USB cable for PC. This allows all functions to be programmed and stored in the system in secure non-volatile memory.
Key Features |
---|
> Fully programmable 5 zone input UHF transmitter > 12V DC powered > All inputs configurable as dry contact or voltage input > Ranges of up to 1 mile with standard 1/4 wave aerial > Fully programmable via USB with optional PC software > Automated 'In Service' calls can be configured to alert pagers to the loss of radio signal > Programmable individual pager text messages for each zone and each zone state > Adjustable trigger times, delays, alarm repeats are all programmable options. > High quality, high power (1w erp) transmitter modules provide rock-solid RF performance > UHF POCSAG signalling format ensures excellent propagation even in difficult environments |
Manufacturer | Scope Communications |
---|---|
MPN | PT4-05-12V |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Dimensions | (H)* 185 x (W) 140 x (D) 42 mm[*335 mm with 1/4 wave antenna] |
Power Input | 12V-13.8V dc @ 0.8A (max) |
Frequency Range (MHz) (subject to licensing conditions) | 446.000 - 469.700 |
RF Output Power | 1 watt (maximum) |
Approvals | CE marked and compliant with the R&TTE Directive 1999/5/EC |
Standards Applied | EN 300 224 (On-Site Paging) |
UK Licence Requirement | Business Radio Simple Site Licence Ofcom reference OFW432 (www.ofcom.org.uk) |
