SKU
TS.5204BC.SRFB.RAL9011BK
£49.73 £41.44

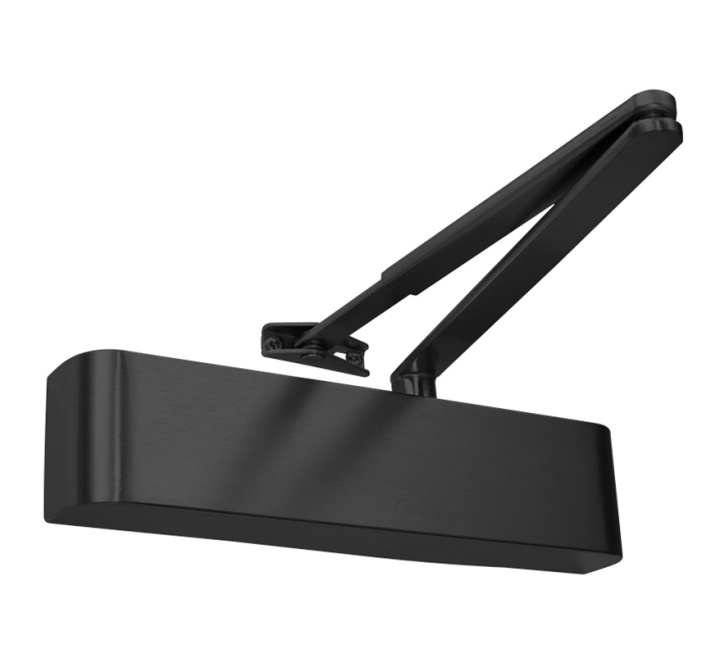

Rutland TS.5204 Door Closer is ideal for Doc M contracts, variable by power & easy to fit. Successfully third party tested to BS EN1154 & CE marked to power size 2-4.
- Buy 10 for £48.97 £40.81 each and save 2%
- Buy 20 for £48.20 £40.17 each and save 3%
- Buy 50 for £47.44 £39.53 each and save 5%
The Rutland TS.5204 is a highly adaptable and cost-effective door closer that offers convenient adjustability. This door closer features spring-based power adjustment, with the added benefit of back-check as standard and optional delayed action. It has successfully undergone third-party testing to meet BS EN1154 standards and carries the CE marking for power size 2-4 applications.
With its variable power size range of EN2-4, the Rutland TS.5204 is suitable for doors weighing up to 80kg and measuring up to 1100mm in width. It serves as a valuable addition to DocM contracts, supporting the ease of opening for door sets as required by BS8300 guidelines.
The Rutland TS.5204 offers universal application, allowing it to be fitted in Standard, Parallel arm, or Transom fitting positions. This versatility ensures compatibility with a wide range of door configurations.
For optimal safety and performance, this door closer has undergone fire testing according to EN1634-1 standards, providing assurance of its reliability in fire protection.
Enhancing user control, the Rutland TS.5204 features adjustable closing speed, latch speed, and back check. This allows for precise customisation to suit specific requirements and preferences.
Key Features |
---|
> Variable power size EN2-4, does doors up to 80kg & 1100mm wide > Assists BS8300 for DocM contracts – helping to assist door sets with ease of opening > Universal application – can be fitted in Standard, Parallel arm or Transom fitting position > Fire Tested to EN1634-1 > Adjustable closing speed, latch speed & back check > 25 year manufacturer guarantee |
Manufacturer | Rutland UK |
---|---|
MPN | TS.5204BC.SRFB.RAL9011BK |
EAN | 5055564223780 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Opening Angle | 180º |
Fig.1 Pull Side Door Width | 360-1100mm |
Fig.66 Push Side Door Width | 485-985mm |
Fig.1 BS8300 Door Width | 920mm |
Fig.66 BS8300 Door Width | 887mm |
Max Door Weight | <80kg |
Power Adjustment | By Spring |
Dimensions (including cover) | W258 x H68 x D45mm |
