SKU
EV-SCM2
£96.01 £80.01

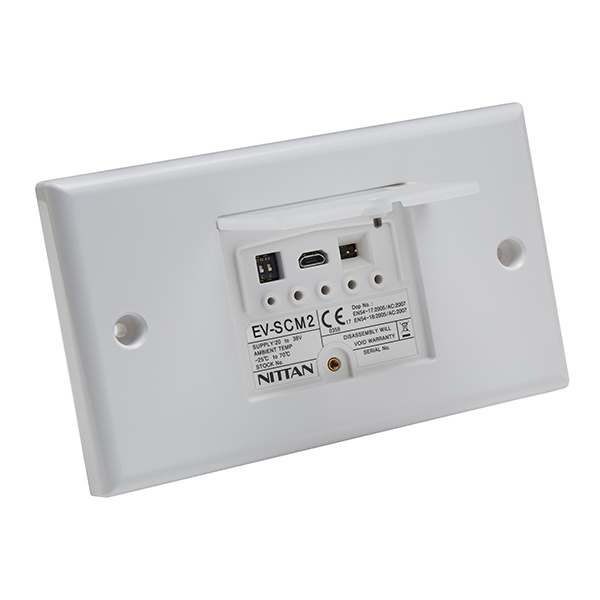

Nittan EV-SCM2 Sounder Control Module with Isolator (Requires 24v PSU)
- Buy 10 for £95.26 £79.38 each and save 1%
- Buy 20 for £94.50 £78.75 each and save 2%
- Buy 40 for £93.74 £78.12 each and save 2%
The Nittan EV-SCM2 is a Dual Output Sounder Control Module, with PSU Fault Input and integral –ve line Short circuit isolator compatible with Evolution analogue addressable system devices.
The Module includes a setting option to improve synchronisation of Sounder / Beacon products.
LEDs are provided to Indicate Output active, Fault and Isolator Open.
The module is designed to fit the range of standard UK 2-Gang electrical enclosures, including Surface & Flush mount options.
Device address may be set using EV-AD2-EXT Hand held programmer.
The Short Circuit Isolator will protect the system, whilst allowing the device to continue communication from the opposite side. The isolator will self-reset when the fault clears.
Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
It is not possible to mix +ve and -ve isolator styles on a system.
The following resistors are required for Fault and Alarm monitoring:
- EOL = 10k Ohm
Key Features |
---|
> 2 x 1A@30Vdc Output > Input for EN54 part 4 PSU fault > Integral -ve Isolater > EEPROM Addressed (Programmer) > Housing fits standard UK 2 Gang pattress box |
Manufacturer | Nittan |
---|---|
MPN | EV-SCM2 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Operating loop voltage | 20 to 38 Vdc |
Quiescent current | 740 µA |
Alarm current | 3.1 mA |
Current in short circuit | 15 mA |
External power supply required | 20 to 30 Vdc |
PSU fault input | 1 x Input |
Output relay contact rating | 2 x 1 Amps @ 30 Vdc |
Operating temperature | -10°C to +55°C |
Storage temperature | -40°C to +80°C |
Relative humidity | < RH 95% (Non-condensing) |
Cable terminals | 0.75 to 2.5 mm2 |
Material | PC/ABS |
Weight | 145 g |
