SKU
EV-PYS
£49.54 £41.28

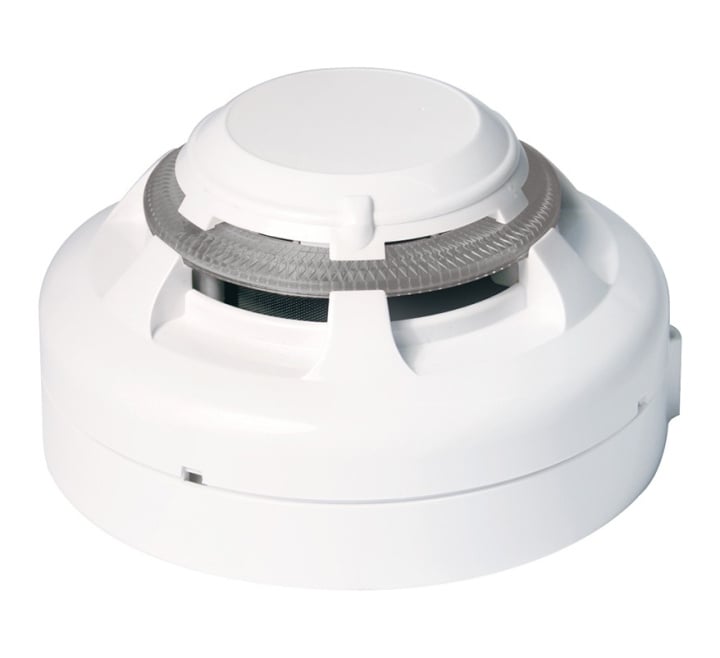

Nittan EV-PYS Evolution Addressable Optical Smoke Detector with Integral Sounder
- Buy 10 for £49.14 £40.95 each and save 1%
- Buy 20 for £48.76 £40.63 each and save 2%
- Buy 40 for £48.36 £40.30 each and save 2%
Benefiting from the same sophisticated detection technology as the EV-P, the EV-PYS Optical Detector comes with a sounder fully integrated within the sensor itself as opposed to a separate sounder base.
The previous EV-PS product proved to be a very successful launch of Nittans detector with integrated sounder range, however its new replacement the EV-PYS comes to the market with some exciting new technological advances centred on an enhanced new “PY” smoke sensing chamber.
Such as:
A spherical feature within the smoke chamber, providing unrivalled performance for scattering light, plus an Orange LED, which significantly improves response across the fire spectrum.
Chamber construction designed to minimise effect of dirt/dust contamination with a fine micromesh made of stainless steel to prevent ingress of even the smallest insects which can create false alarms.
The EV-PYS sensor drives and controls the EV-PYSVAD VAD Beacon Base, with the entire platform only taking one address for maximum system efficiency. This clever design makes for quick and simple installation, saving both time and money, whilst remaining extremely competitively priced. It also makes for a more aesthetically pleasing appearance, with a lower profile for an unobtrusive appearance.
Key Features |
---|
> Optical Detector with built in Sounder > Sounder output ~ 88dB(A) @ ~ 3.5mA > Omniview 360° LED > Drive Output for dedicated EV-PYSVAD beacon base > Evolution FSK protocol > EEPROM Addressed (Programmer) > Approved to EN54-3:2001 + A1:2002 + A2:2006 & EN54-7:2000 + A1:2002 + A2:2006 |
Manufacturer | Nittan |
---|---|
MPN | EV-PYS |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Manufacturer: | Nittan |
Product Code: | EV-PYS |
Sensor Method: | Optical Light Scatter |
Sounder Type: | Type A Indoor |
Sounder Device: | Piezo |
Sounder Output (Minimum): | 77 to 88 dBa @ 1 metre (Directional dependent) |
Sounder Tone Pattern: | 750/1000Hz – 0.5/0.5 Sec |
Operating Voltage: | 24 VDC to 38 VDC |
Quiescent Current: | 200µA |
Alarm Current: | 3.5mA (+ 5mA LED On) |
Sounder Power Consumption: | 150 mW |
Current for external remote LED indicator: | 2mA |
Operating Temperature: | – 10°C to + 55°C |
Storage Temperature: | -25°C to +70°C |
Charging Time: | 1 Minute |
Relative Humidity: | ≤ RH95% non-condensing |
I.P. Protection Rating: | IP42C |
Cable terminals: | Max 2.5 mm2 |
Material: | FR-ABS |
Material Specification (UL94): | V-2 (Min wall thickness) |
Mass: | 145g |
Test Approvals: | EN 54-3: 2001 + A2: 2006 EN 54-7: 2001 + A2: 2006 |
