SKU
T11040M2
£310.07 £258.39

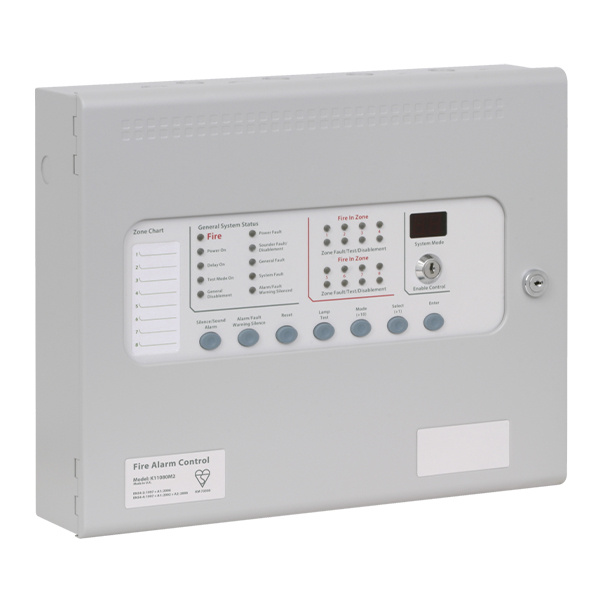

Kentec Sigma CP 4 Zone Sav-Wire Fire Panel (T11040M2)
The Kentec Sigma CP 4 Zone Sav-Wire Fire Panel (T11040M2) is a two-wire conventional fire alarm control panel designed for use with conventional devices and sav-wire detector bases from Apollo or Hochiki.
The Sigma CP sav-wire fire alarm control panel from Kentec is designed for the most demanding of conventional fire detection and alarm system applications. It is easy to install with a range of extensive configuration features to ensure suitability for new fire alarm installations or control panel replacements on older systems.
Configuration options are stored in non-volatile memory and are easily accessed via an intuitive user interface, which enables the configuration data to be viewed and changed efficiently.
Kentec Sigma CP control panels are compatible with most standard conventional detectors, call points and sounders combined with the use of sav-wire detector bases from Apollo and Hochiki.
The panel is Kitemarked by BSi to BS EN54-2 and BS EN54-4.
Powerful Features
The simple and intuitive programming interface on Sigma CP fire panels allows simple configuration of many parameters by entering simple codes which are listed on the inner door look up table and in the operation and maintenance manual.
Connectivity
Sigma CP control panels have a dedicated ‘two-wire’ serial bus for connection of repeater panels, ancillary relay boards or zonal sounder extension boards. Up to seven units may be connected to the serial bus which can be up to 1200 metres in length.
Ease of Installation
The elegant and simple construction of the panel enables the chassis to be completely dismantled by removing just two screws.
Key Features |
---|
> Compatible for use on BS5839: Part 1: 2017 installations > Fully programmable using simple menu options > Simple, single board construction > Installer friendly > Compatible with a wide range of conventional detection devices and sav-wire detector bases from Apollo and Hochiki > Two monitored sounder outputs > Three Amp power supply > Auxiliary power output > Kitemarked and certified to BS EN54-2 and BS EN54-4 |
Manufacturer | Kentec Electronics |
---|---|
MPN | T11040M2 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour - lid & box | BS 00 A 05 grey - fine texture |
Colour - control panel & labels | RAL 7047 light grey - satin |
Weight | 6kg |
Supply Voltage | 230V AC (+10%/-15%) |
Mains supply fuse | 1.6 Amp 250V |
Power supply DC rating | 24V 3 Amps |
Maximum battery size | 7Ah 12V (2 per panel) |
Fault contract rating | 30V DC 1 Amp |
Local fire contract rating | 30V DC 1 Amp |
Fire contract rating | 30V DC 1 Amp |
Sounder output rating | 0.5A per output (max 1.6A over all outputs) |
Detection zone current | 1.6 milliamps |
Detection zone EOL resistor | 6k8 5% |
Sounder output EOL resistor | 10k 5% |
Cable capacity | 2.5mm² per terminal |
Operating temperature | -5°C to +40°C |
Operating humidity | <95% (non condensing) |
