SKU
CSB-E
£34.85 £29.04

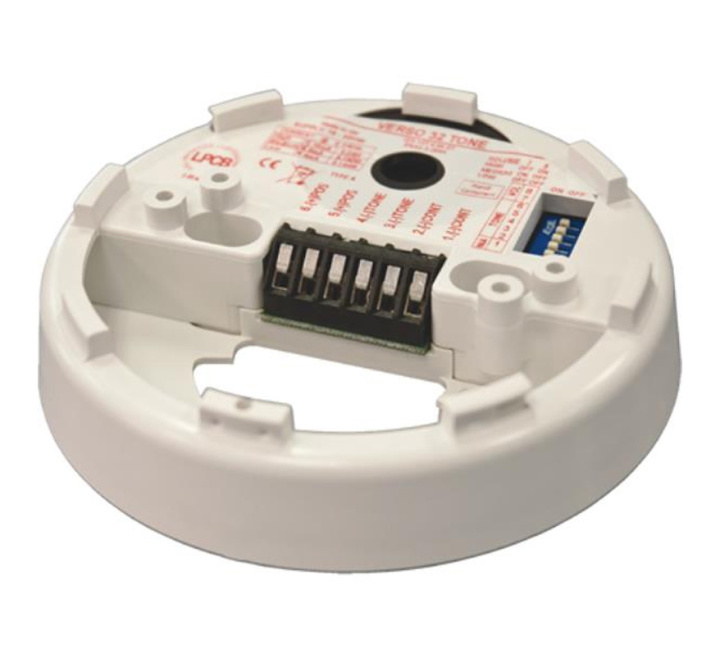

Hochiki CSB-E Conventional Sounder Base - Ivory Case
- Buy 10 for £34.32 £28.60 each and save 2%
- Buy 20 for £33.78 £28.15 each and save 3%
- Buy 50 for £33.24 £27.70 each and save 5%
The Hochiki CSB-E is platform type sounder, which will accept the CDX Range of detectors mounted with an appropriate base. The improved electronics result in a very low current consumption with a high sound output. A set of DIL switches are used to select the unit’s tone and sound output (three settings, LOW, MEDIUM and HIGH).
Key Features |
---|
> Robust design > Low current consumption > Easy to install > Maximum 93 dB(A) 1 metre (Tone 1) > 32 user-selectable tones and 3 user-selectable volumes > Lockable cap available > EN54 Part 3 approval > Requires detector mounting baseif fixing detector (YBN-R/6) |
Manufacturer | Hochiki |
---|---|
MPN | CSB-E |
Write Your Own Review
![Loading...](https://www.safefiredirect.co.uk/static/version1719466362/frontend/Alothemes/electro2s/en_GB/MageArray_ProductQuestions/images/loader.gif)
Sort By:
No questions yet. Be the first to ask the question!
Description | Hochiki Conventional Sounder Base |
Product Code | CSB-E |
Dimensions (mm): | Dia: 116 x H 25 |
Sound output @1m, Tone 1: | Low: 86.2 dB(A) Medium: 87.7 dB(A) High: 91.2 dB(A) |
Current consumption @ 24Vdc: | Low: 5.7 mA Medium: 7 mA High: 9.4 mA |
Voltage range: | 18 – 30 V dc |
No. of tones: | 32 |
Operating frequency: | 440 Hz – 2900 Hz |
IP rating: | IP21C |
Operating temperature: | -20oC to +70oC |
Compatible CDX Detectors: | SLR-E3N, DCD-AE3, DCD-CE3, DFJ-AE3, DFJ-CE3 |
Compatible CDX Bases*: | YBN-R/6, YBO-R/6PA, YBO-R/6R, YBO-R/6RN, YBO-R/6RS, YBN-R/6SK |
Colour: | Ivory |
Approval: | Approved to EN54 part 3 by the LPCB and VdS on tones 1, 3, 11, 25 and 27 |
Weight: | 110g |
