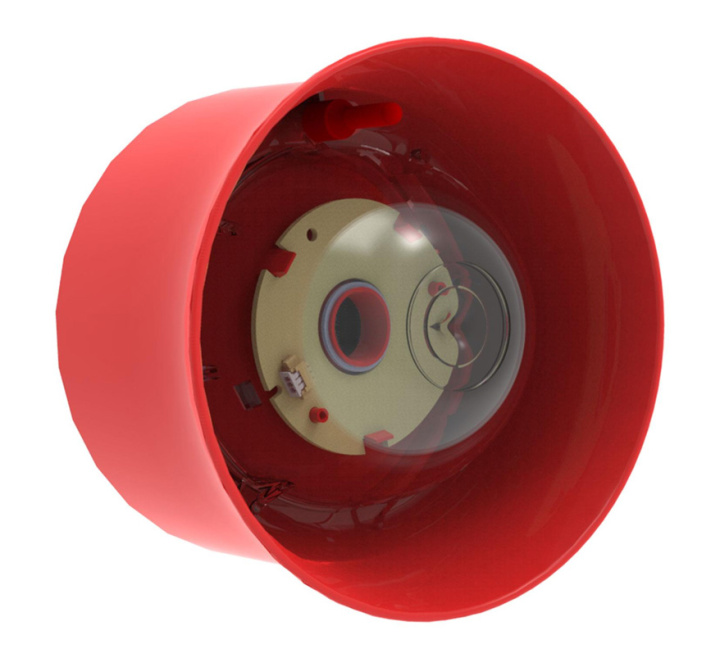

Hochiki CHQ-WSB2/WL Addressable Wall Sounder VAD Beacon - Red Case, White LEDs (No Base)
SKU
CHQ-WSB2/WL
£61.40 £51.17
Hochiki CHQ-WSB2/WL Addressable Wall Sounder VAD Beacon - Red Case, White LEDs (No Base)
- Buy 10 for £60.46 £50.38 each and save 2%
- Buy 20 for £59.51 £49.59 each and save 3%
- Buy 50 for £58.57 £48.81 each and save 5%
The Hochiki CHQ-WSB2/WL is an EN54-23 compliant addressable loop-powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption
The unit features an integral beacon within the horn utilising high-intensity LED technology and is designed to fit to the Standard Base (YBO-R/3(RED)) or the Isolator Base (YBO-R/SCI(RED))
The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the CHQ-WPK Weatherproofing Kit, which consists of a specialised back box and gasket set
The sounder also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
| Key Features |
|---|
| > Loop powered > Single loop address - addressed via the TCH-B200 Hand Held Programmer > Variable sound output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre > High intensity LED technology > 0.5 or 1Hz flash frequency > Fits Hochiki standard or isolator base > Weatherproof kit available > 51 user-selectable tones (all tones EN54-3 compatible) > Also available in white > Approved by LPCB to EN54-23: 2010 - Category 'O' |
| Manufacturer | Hochiki |
|---|---|
| MPN | CHQ-WSB2/WL |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Description | Hochiki Analogue Wall Sounder Beacon |
| Product Code | YBO-WSB2/WL |
| Dimensions: | W:112mm x H:112mm x D:67mm |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 150 μA |
| Sounding curent (typ): | 2 mA (90 dB(A) (±2 dB(A)) @ 1 m) ~ 8 mA (102 dB(A) (±2 dB(A)) @ 1 m) |
| Additional current when beacon active: | + 7 mA |
| Sound output (@ 1m): | 90 ~ 102 dB(A) (±2 dB(A)) @ 24 Vdc or above |
| No. of tones: | 51 |
| Tone frequency range: | 300 Hz ~ 2850 Hz |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +70°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Colour/Case material: | Red / PC ABS |
| Lens material: | Transluscent PC / White LEDs |
| IP Rating: | IP21 |
| Base fixing centres: | 48 - 74 mm |
| Weight: | 164g |
