SKU
CHQ-AB
£33.62 £28.02

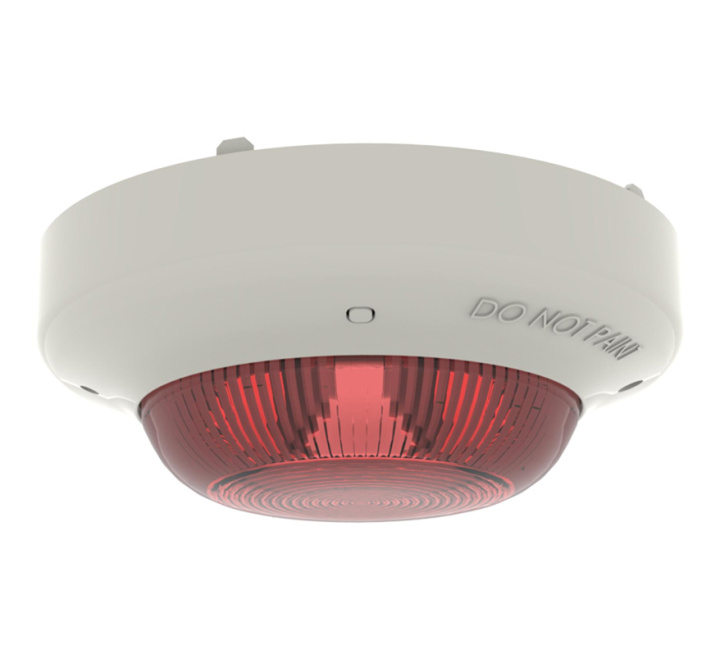

Hochiki CHQ-AB Addressable VID Beacon - Ivory Case, Red Lens (non EN54-23 compliant)
- Buy 10 for £33.10 £27.58 each and save 2%
- Buy 20 for £32.58 £27.15 each and save 3%
- Buy 50 for £32.06 £26.72 each and save 5%
The Hochiki CHQ-AB is an addressable loop-powered Beacon, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash.
The casing exactly matches the Hochiki ESP Sensor range in shape and colour providing seamless integration.
The unit can be used on the Standard ESP Base (YBN-R/3), the Base Sounder (YBO-BS), the Base Sounder Beacon (YBO-BSB2) or the Short-Circuit Isolator Base (YBO-R/SCI).
Key Features |
---|
> High Intensity LED technology > Variable flash frequency (dependant on control panel compatibility) > Addressable via Hand Held Programmer(TCH-B200) > Up to 127 devices per loop > Red lens colour > Approved by VdS |
Manufacturer | Hochiki |
---|---|
MPN | CHQ-AB |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Description | Hochiki Analogue Addressable Loop-Powered Beacons |
Product Code | CHQ-AB |
Dimensions: | Dia:100mm x D:38mm (46 with base) |
Operating voltage: | 17 - 41 VDC |
Quiescent current (typ): | 240 μA (300 μA max) |
Loop current (when polled): | 22 mA ± 20% |
Alarm curent (typ): | 4.3 mA (5.0 mA max) |
Operating temperature range: | -10 °C to + 50 °C |
Storage temperature range: | -30°C to +60°C |
Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
Case colour: | Ivory |
Lens colour: | Red |
Base fixing centres: | 48 - 74 mm |
Approvals: | VdS (G206052) |
Weight: | 88g |
