Siemens FDS366-WW Cerberus FIT White Wall Sounder Beacon with White LED (No mounting base)
SKU
S54364-F108-A1
£61.27 £51.06

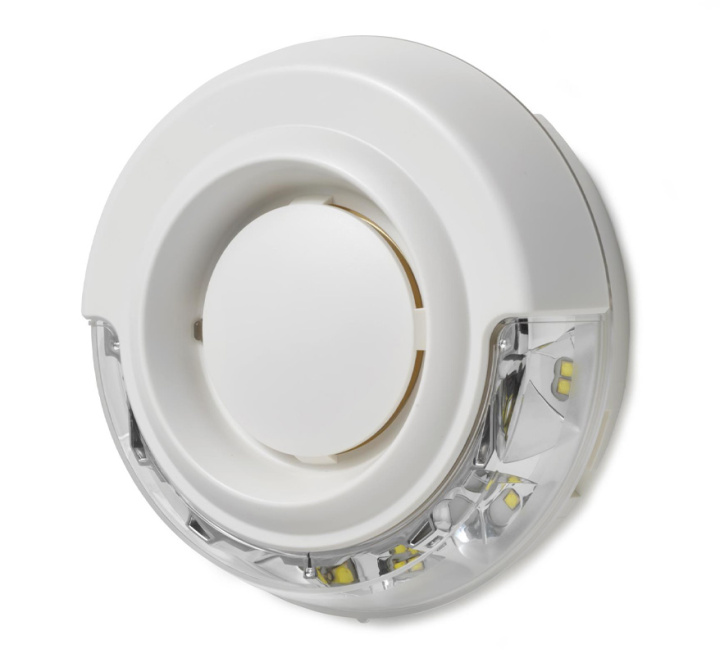

Siemens FDS366-WW Sounder Beacon, White with white LEDs (S54364-F108-A1)
- Buy 10 for £60.34 £50.28 each and save 2%
- Buy 20 for £59.39 £49.49 each and save 3%
- Buy 50 for £58.45 £48.71 each and save 5%
The Siemens FDS366-WW (white case, white LEDs) provides an alarm in an addressed fire detection system (Cerberus 360 panels only) and activates an acoustic and optical alarm signal in the event of a fire alarm. It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The tones and the luminous intensity are adjustable, the devices are synchronized.
Each device has 16 tones ex-factory. All devices have their own device addresses and can be configured independently of each other. The devices are available with red or white flashing LEDs.
Supply and communication via C-NET, no auxiliary power needed. The device automatically monitors its beacon and acoustic function.
The base must be ordered separately.
| Key Features |
|---|
| > Addressed (C‑NET) > Meets the requirements of the EN 54‑3 (sounder) and EN 54-23 (beacon) standards > Supply and communication via C‑NET > Max. 16 tones to choose from, 2 programmable events: 'Warning (ALERT)' and 'Evacuation (EVAC)' > Sound levels up to max. 99 dBA > Integrated line separator > The device automatically monitors its beacon and acoustic function > Tool-free connection to the detector line. Possible conductor cross-sections to 2.5 mm2 > Max. protection category achievable: IP65 for use with base deep FDB227‑x and M20 x 1.5 metal cable gland with M20 x 1.5 counter nut > Synchronization of acoustic signals > Protected electronics and high-quality components > This device is functional exclusively together with a Cerberus FIT fire control panel FC360 |
| Manufacturer | Siemens |
|---|---|
| MPN | FDS366-WW |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product: | Siemens Sounder Beacon with LEDs |
| Product code: | S54364-F108-A1 |
| Dimensions: | Ø:116mm x D:42.7mm |
| Standard: | EN 54-3 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating current: | 4 - 16 mA (tone and beacon activated) |
| Quiescent current: | 400 μA |
| Sound intensity: | 75 - 99 dB(A) |
| Light intensity: | Medium = W-2.4 - 7.5 indicator |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP33C; IP65 with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: | 16 |
| System compatibility: | C-NET -> FC360 |
| Communication protocol: | C-NET |
| No. of addresses: | 1 |
| Colour: | Pure White, RAL 9010 |
| LED colour: | White |
