SKU
PSD212
£24.35 £20.29

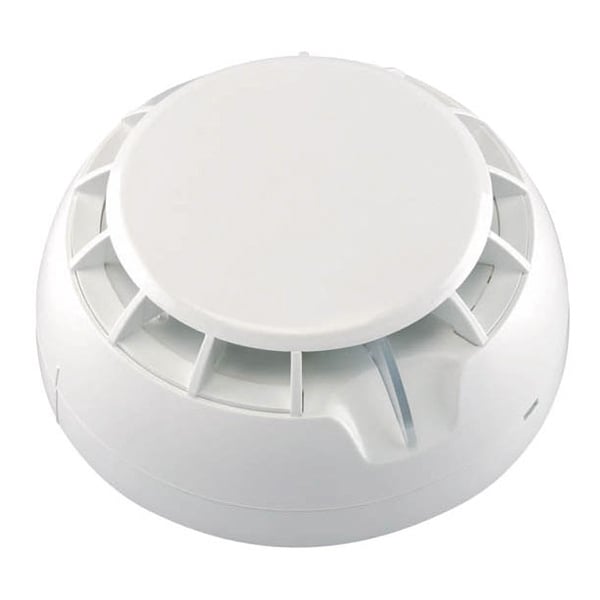

ESP MAGfire 12V Optical Smoke Detector with Relay Base (PSD212)
- Buy 10 for £23.98 £19.98 each and save 2%
- Buy 20 for £23.60 £19.67 each and save 3%
- Buy 50 for £23.23 £19.36 each and save 5%
ESP MAGfire PSD212 Optical Smoke Detector with Relay Base. Designed for use with 12V hardwire intruder alarm systems. Supplied with a relay base. Fully compliant with CPR and approved to EN54 standards.
Key Features |
---|
> Optical Smoke Detector with Relay Base > 12v DC hardwire > White > IP30 rated > Can be used on Grade-C systems > BS EN 54-7 compliant |
Manufacturer | ESP |
---|---|
MPN | PSD212 |
EAN | 5060224101667 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Dimensions (mm): | ø102 x 48 (including base) |
Finish: | White |
Materials: | ABS |
Test Facility: | Simulated smoke |
Operating Voltage: | 9 - 30 V DC |
Alarm current | 29 @ 12V (mA) |
Cable size (mm2): | 0.4 - 2.0 (Twin) |
Standby Current: | <50 @ 12V (μA) |
Wiring Type: | Conventional |
Output Relay Rating: | 30V/0.5A |
IP Rating | IP30 |
Operating Temperature: | -10o to +60o C |
Relative Humidity Resistance | 93% (+-3) @ 40oC |
Warranty: | 3 years |
Weight: | 0.16kg |
Standards: | BS EN 54-7 |
