SKU
FHD2
£10.27 £8.56

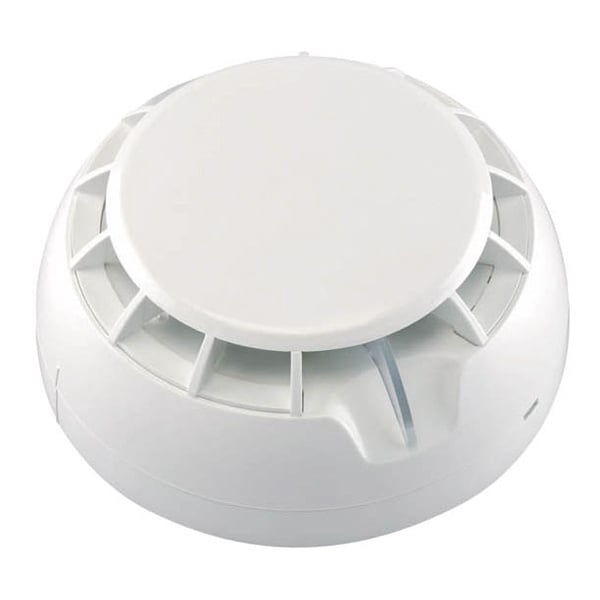

ESP MAGfire 60°C Fixed Temp Heat Detector w/ Diode Base (FHD2)
- Buy 10 for £10.12 £8.43 each and save 2%
- Buy 20 for £9.96 £8.30 each and save 3%
- Buy 50 for £9.80 £8.17 each and save 5%
The ESP FHD2 is an A2S class static heat detector (triggers at temperatures over 60°C) supplied complete with a diode detector base. The FHD2 is designed for use with the ESP MAGfire conventional panel range, but it is compatible with any conventional fire alarm panel with low fire alarm threshold between 10mA and 15mA.
Key Features |
---|
> Conventional fixed heat detector > Supplied with diode detector base > Detects temperatures above 60°C - Class A2S > Digital processing algorithm > Low profile design > LED indication with 360° visibility > Sensor status indication on every 8 seconds |
Manufacturer | ESP |
---|---|
MPN | FHD2 |
EAN | 5060224100943 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Type | Conventional |
Approval | EN54-5 |
Class | A2S |
Operating Voltage | 9 - 30VDC |
Standby Current @ 24v | < 60µA |
Alarm Current @ 24v | 49mA |
Wire Gauge | 0.4mm - 2.0mm TWIN |
Operating Temperature | -10°C to 60°C |
Test Facility | Heat Source |
