SKU
MAG2
£121.34 £101.12

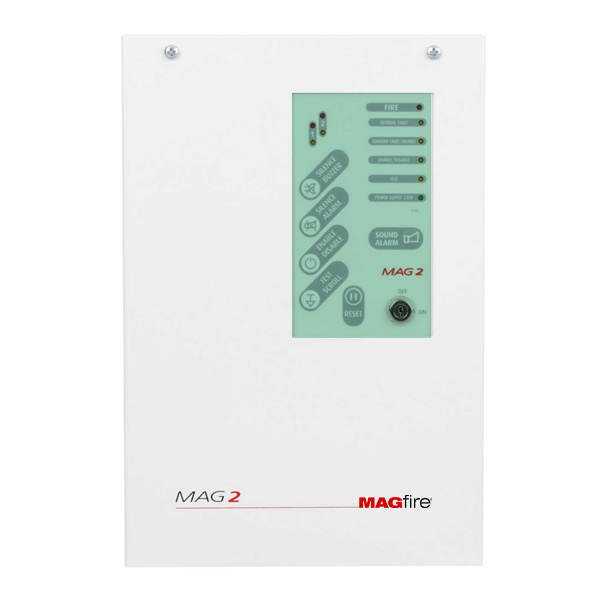

ESP MAGfire 2 Zone Conventional Fire Panel - Metal Casing (MAG2)
The ESP MAGfire MAG2 is a conventional fire alarm control panel in a durable metal casing with 2 programmable detection zones which can accommodate up to 30 detectors per zone and an unlimited number of manual call points per zone. The panel supports active end of line monitoring for detector head removal in compliance with BS5839-1 and is compliant to EN54-2 & 4.
The ESP® fire systems have been created to balance performance, reliability and aesthetics whilst being fully CPR compliant and certified to EN54 standards.
Key Features |
---|
> 2 programmable zones > Active end of line monitoring and head removal > 30 fire detectors per zone > Unlimited number of call points per zone > Integral sound alarm button > 'Class change' facility > Enable/disable security key > One man walk test facility > Volt free fire and fault change over relays > Individual sounder circuit fault ID > Individual zone/sounder isolate > EN54 P2/4 compliant and CE certified > Requires only 1 x 12v 7Ah battery > Metal casing |
Manufacturer | ESP |
---|---|
MPN | MAG2 |
EAN | 5060224100868 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Max Detectors Per Zone | 30 |
Thresholds for Zone Conditions | 0 - 2 mA (Fault condition) 2 - 6 mA (Normal condition) 6 - 110 mA (Fire condition) 110 mA - Short (Fault condition) |
Mains Fail Consumption | 50mA |
Mains Supply | 230 VAC ± 10% |
Standby Supply | ÂÂ1 x 7ah 12V S.L.A. Battery |
Power Availability | 0.7 amps |
Sounder 1 | 24V (max 300mA fused) |
Sounder 2 | 24V (max 300mA fused) |
Fault/Fire Relay | Volt free 500mA @ 24V (max load) |
Auxiliary Output | 24VDC (300mA fused) |
Working Temperature | 0 to 40ºC |
Storage Temperature | -20 to 60ºC |
Humidity | 0 - 95% |
Dimensions MAG2P | 340 x 290 x 100mm |
Dimensions MAG2 | 200 x 290 x 80mm |
Weight | MAG2P - 2.1Kg MAG2 - 2.7Kg |
