SKU
CHAMELEON-REP
£416.52 £347.10

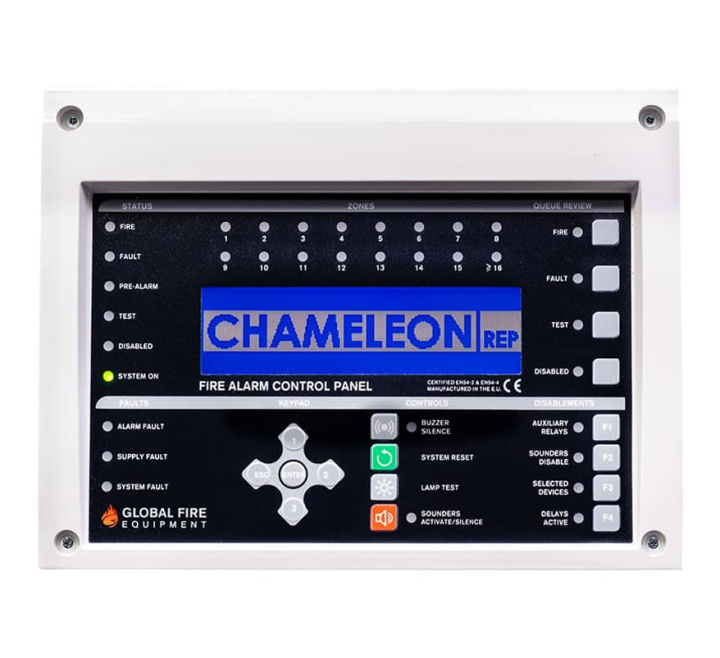

Global Fire CHAMELEON Network System Repeater c/w RS422 Network Card (CHAMELEON-REP)
The Global Fire CHAMELEON MINI REP is the most effective solution when you need full control of a networked system.
In a Chameleon Network, the CHAMELEON REPEATER is used as a ‘System Repeater’. It works as an addressed networked panel (without loops) and can process and register (event log) all ‘system info’. For connection diagrams and project commissioning, please refer to the Chameleon Network manual, as well as the manual of the communication interface being used.
The graphical backlit LCD display can accommodate any type of custom characters or graphic symbols, allowing multi-language support, as well as pictorial and customisable elements.
The CHAMELEON MINI REP does not require batteries. It should be connected to an external power supply. The Cause and Effect programming of the whole system, as well as all customer specific configuration, can be downloaded or uploaded using the CHAMELEON CONNECTOR software and later broadcast to other networked CHAMELEON panels.
Key Features |
---|
> Network Compatible with CHAMELEON range of control panels: G-One, GEKKO, OCTO+ and NODE+. > Connect to control panels via RS422, Fibre-Optic or TCP/IP > 10,000 events Log > Backlit LCD graphic display (240 x 64 px) > Programme via integrated keypad or Loader PC software > Multiple language support (menu selectable) |
Manufacturer | Global Fire Equipment |
---|---|
MPN | CHAMELEON-REP |
Primary Power Source | 24V DC |
System Type | Addressable |
Protocol Compatibility | GFE ZEOS |
Colour | White |
Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Product Code: | CHAMELEON-REP |
Product description: | CHAMELEON Network System Repeater |
Dimensions: | W:256mm x H:194mm x D:75mm |
Enclosure: | White (RAL 9003), Red (RAL3001) or Anthracite (RAL 7016) |
Primary supply: | 28.5V DC nominal (max) |
Quiescent current: (no devices) | 65mA |
Operating/storage temp: | -10oC to +50oC |
Humidity: | Max 85% RH Non-condensing |
Ingress protection/material: | IP30 / ABS |
Weight: | 760g |
