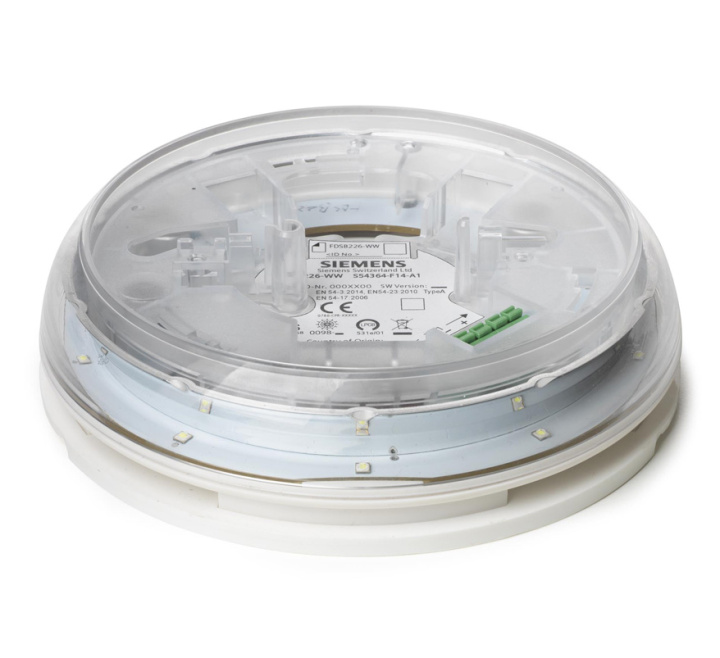

Siemens FDSB227-WW Cerberus PRO Voice Sounder Beacon Base with White LED
SKU
S54364-F16-A1
£92.21 £76.84
Siemens Voice Sounder Beacon Base, White with white LED, ceiling mount, requires base FDB228 or FDB230
- Buy 10 for £90.78 £75.65 each and save 2%
- Buy 20 for £89.36 £74.47 each and save 3%
- Buy 50 for £87.95 £73.29 each and save 5%
The Siemens FDSB227-WW Cerberus PRO Voice Sounder Beacon Base (white with white LED) provides an alarm in an addressed fire detection system and activates an acoustic and optical alarm signal with a voice message in the event of a fire alarm.
It is mounted on the ceiling e. g. in hotel rooms, along escape routes, corridors, staircases and offices.
The sound level, the tones, the luminous intensity and the voice messages are adjustable, the devices are synchronized. 15 languages are integrated in the device, each voice message can be emitted in two consecutive languages.
Supply and communication via FDnet/C-NET, no auxiliary power needed. The device automatically monitors its beacon and acoustic function.
The base must be ordered separately.
| Key Features |
|---|
| > For use on an FDnet/C-NET detector line in connection with a fire control panel FC20xx ('Sinteso'), FC72x ('Cerberus PRO') or FC360 (Cerberus FIT) > Voice sounder beacon base for ceiling mounting > Addressed (FDnet/C-NET) > Meets the requirements of the EN 54-3 and EN 54‑23 standards > Supply and communication via FDnet/C-NET > 16 tones > 2 programmable events: 'Alert' and 'Evacuation' > Adjustable sound levels up to max. 96 dBA > White LED with four adjustable luminous intensities > Voice output > 15 languages integrated in the device; each voice message can be emitted in two languages; max. 7 available events > Integrated line separator > Automatically monitors its beacon and acoustic function > Tool-free connection to the detector line > Possible conductor cross-sections to 2.5 mm2 > Max. protection IP21C > Synchronization of voice messages > By setting the appropriate tone, it can be used as a break bell in schools or plants > Simple configuration of the voice messages with the configuration software for the respective fire detection system > Operation without a fire detector is possible with the blanking plate FDBZ298 > Protected electronics and high-quality components > Suitable for public and office buildings, hotels and schools |
| Manufacturer | Siemens |
|---|---|
| MPN | FDSB227-WW |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product: | Siemens Voice Sounder Beacon Base with LED |
| Product code: | S54364-F16-A1 |
| Dimensions: | Ø:144mm x D:40mm |
| Standard: | EN 54-3 , EN 54-23 , EN 54-17 |
| Operating voltage: | DC 16 - 33V |
| Operating current: | 5 - 29 mA (tone and beacon activated) |
| Quiescent current: | 400 μA |
| Sound intensity: | 70 - 93 dB(A) |
| Light intensity: | High = C-3-12 Medium = C-3-10 Low = O-2.5-6.5 Indicator |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP21C; IP21C with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: | 16 |
| System compatibility: | FDnet -> FS20 (MP7) C-NET -> FS720 (IP7) |
| Communication protocol: | FDnet/C-NET |
| No. of addresses: | 1 |
| Colour: | Pure White, RAL 9010 |
| LED colour: | White |
