SKU
NC806CS/SS
£56.75 £47.29

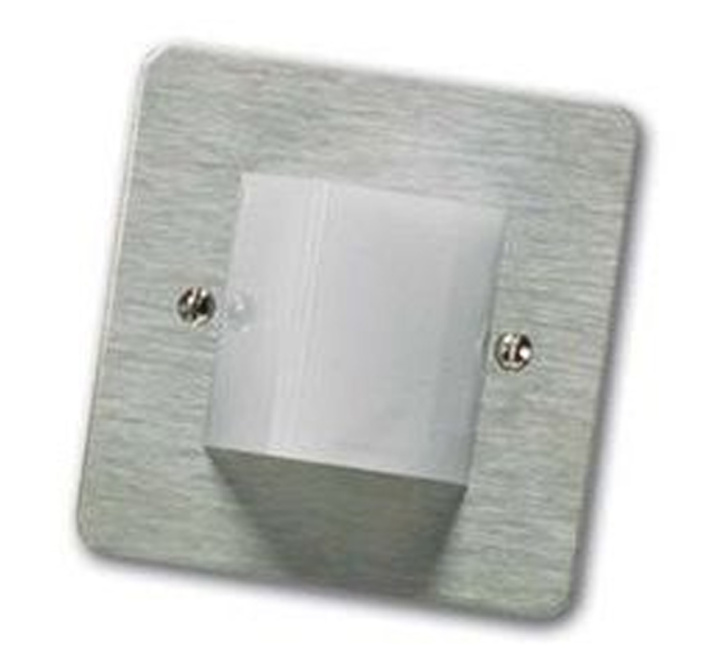

C-TEC NC806CS/SS Stainless Steel Overdoor Light with Sounder
The C-TEC NC806CS/SS is a sleek and sturdy brushed stainless steel overdoor light with sounder. This innovative product provides both audible and visual indication of 800 Series Alarm calls outside bedrooms, WCs, and any other area fitted with an 800 Series calling device.
Designed for maximum visibility, the NC806CS/SS features dual red LEDs and a triangular diffuser, ensuring it can be seen from a distance. It also indicates Standard calls through a constant tone and constant red light, while Emergency calls are indicated by a pulsing tone and pulsing red light.
Installation is a breeze, as the product mounts easily on a standard UK 25mm single gang flush or surface back box. Additionally, the NC806CS/SS can function as an 'area indicator' at corridor junctions, staff workstations, and more.
Key Features |
---|
> Stainless Steel Overdoor Light with sounder > Visual & audible indication of 800 Series alarm calls outside bedrooms, WCs etc > Highly visible from a distance (dual red LEDs) > Surface/flush mounted on std UK 25mm single gang back box > Can be used as an 'area indicator' at corridor junctions, workstations etc > Standard calls - constant red light > Emergency calls - pulsing red light > IP41 rated |
Manufacturer | C-TEC |
---|---|
MPN | NC806CS/SS |
EAN | 5056059605067 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Dimensions: Mounts on UK 25mm single gang back box | W:87mm x H:87mm x D:68mm. |
Quiescent current: | 0mA (none) |
Alarm current: | Determined by type of control equipment and number/type of field devices connected to system |
Indicators: | Dual ultra-bright red alarm LEDs (lit constantly for standard calls, intermittently for emergency calls) |
Controls: | None (device controlled by master calling device it is connected to) |
Connections: | 1 (Signal); -ve (Negative); +ve (Positive) |
Onboard sounder: | Yes. Sounds constantly for standard calls, intermittently for emergency calls. |
Onboard infrared receiver: | No |
Construction & finish: | Stainless Steel |
Operating temperature: | -5oC to +40oC, 95% humidity non-condensing |
IP rating: | IP41 |
