SKU
BF446C/CC/SR
£24.80 £20.67

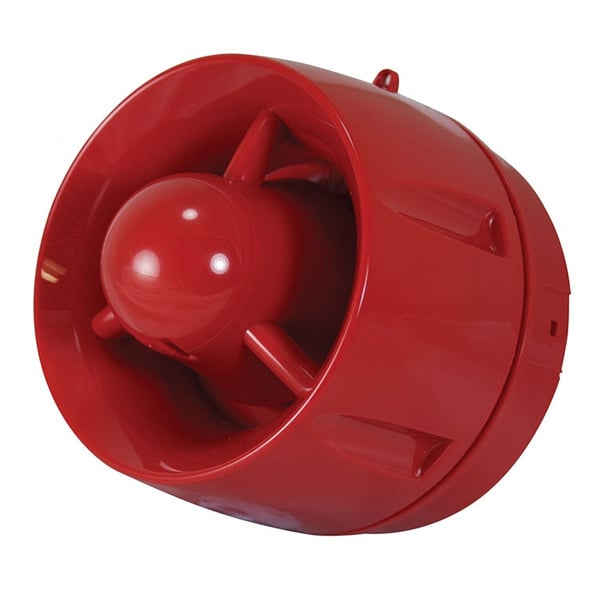

C-TEC ActiV Hi-Output Wall Voice Sounder - Shallow Base (BF446C/CC/SR)
The ActiV Hi-Output range of conventional voice sounders and combined voice sounder visual alarm devices (VADs) are designed for use with C-TEC’s range of conventional fire panels (CFP, FP/ MFP, EP203) and other compatible third-party panels. However, compatibility testing with third-party panels is recommended to ensure correct operation.
With a 100 dB(A) peak sound output @ 1 m, their purpose is to visually and audibly alert building occupants of a fire alarm. Units are supplied with either a shallow or deep base, in a red plastic enclosure.
The devices offer low current consumption, high sound output, high efficiency VADs, four selectable tones, two selectable evacuation voice messages, two selectable volume levels and three selectable VAD flash rates. Tones, messages, volume levels and VAD flash rates are selected using the device’s 8-way DIP switch.
All devices are designed to comply with the relevant sections of the fire alarm device standards EN 54-3 (Sounders) and EN 54-23 (Visual alarm devices - VADs).
Key Features |
---|
> Superb sound intelligibility. > Choose from two evacuation voice messages and four evacuation alarm tones (your selected evacuation message will be preceded by the selected tone). > Alarm Current at 30Vdc = 10mA. > Alarm Current at 18Vdc = 8mA. > IP21C rated. > Manufactured in the UK by C-TEC. |
Manufacturer | C-TEC |
---|---|
MPN | BF446C/CC/SR |
EAN | 5056059609966 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Protocol/Compatibility: | Compatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes (testing on third-party panels is recommended before use) |
Application/Operation: | Designed to be wall mounted. Indoor areas only. |
VAD category & coverage: | N/A |
Flash rate & colour: | N/A |
Supply/Operating Voltage: | 18 to 30V DC |
Alarm Current: | At 30Vdc: 10mA; At 18Vdc: 8mA |
Product Dimensions (mm): | 108mm diameter x 99mm deep |
IP rating: | IP21C (Type A) |
Weight: | 215g |
Operating conditions/temperature: | -10ºC +55ºC. Max. 95% RH (Non-condensing) |
