SKU
C4403A1R
£13.63 £11.36

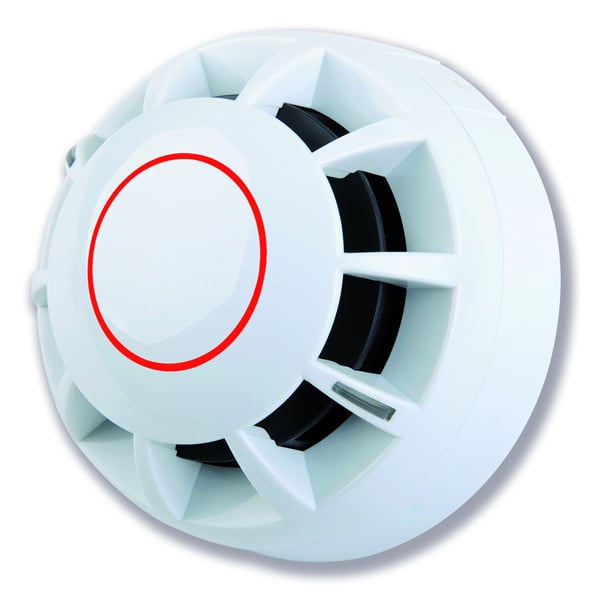

C-TEC ActiV A1R Rate-of-Rise Heat Detector (C4403A1R)
A high-quality Type A1R static/rate of rise heat detector offering outstanding detection performance at a very competitive price. Manufactured by C-TEC in the UK. Generates an alarm condition when it detects a sudden rise in temperature or if it detects a static temperature of between 54ºC & 65ºC.
Key Features |
---|
> Third-party certified to EN54-5 by Intertek. > Wide 6-33V DC operating voltage. > Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility. > Mounting bases are sold separately (Click here to see compatible bases) |
Manufacturer | C-TEC |
---|---|
MPN | C4403A1R |
EAN | 5056059601588 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Approvals/Certifications | Certified to EN54-5 by Intertek (0359-CPR-00183) |
Application/Operation: | Generates an alarm condition when it detects a sudden rise in temperature or if it detects a static temperature of between 54°C & 65°C. |
Application temperature: | 25°C typical, 50°C max |
Static response temperature: | 54°C min, 65°C max. |
Supply wiring: | 2-wire monitored, polarity sensitive |
Supply/operating voltage: | 9 to 33V DC |
Quiescent current: | 30µA @ 24 VDC |
Alarm Voltage: | 6-33V DC |
Alarm Current: | 19mA @12-33V DC; 11mA @ 9V DC; 2.5mA @ 6V DC |
Alarm Reset Voltage: | Less than 1V DC (+0.5 seconds alarm reset time) |
Expansion connections: | Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC. |
Product Dimensions: | 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep |
Construction & Finish: | White Polycarbonate casing rated to UL94 V-2 with nylon parts |
IP Rating: | IP42 |
Weight: | 99g |
