SKU
ECU-8NT
£973.06 £810.88

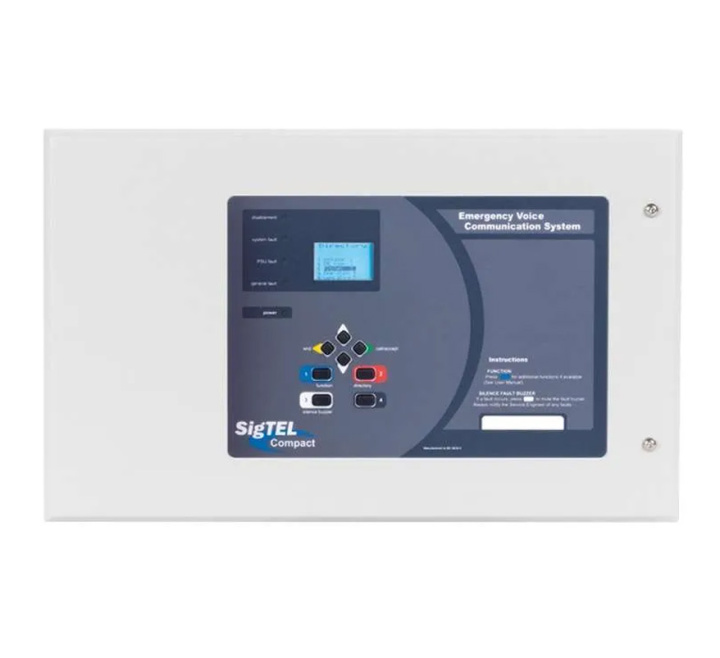

C-TEC ECU-8NT SigTEL 8 Line Master Controller, no handset
The C-TEC ECU-8NT is an 8 line master controller designed for use in disabled refuge, fire telephone, and stadium marshalling applications. This model does not include a handset, making it ideal for use on networked SigTEL systems that do not require multiple control points.
With the capability to connect to up to eight disabled refuge or fire telephone outstations, the ECU-8NT features improved networking capability that allows systems of up to 224 lines to be created with optional/additional desk unit control. The system is supplied with a backlit LCD display and a unique ‘auto-learn’ facility that enables fast and easy system set up.
The ECU-8NT can be semi-flush mounted using an AFP385 bezel and can operate for 24 hours (standby) and 3 hours (in use) using 2 x 12V 7 Ahr batteries. It can be easily interfaced to NC951 accessible toilet alarms, PDA range hearing loop systems, strobes, CCTV activation relays, and other compatible systems.
Key Features |
---|
> Ideal for disabled refuge, fire telephone and stadium marshalling applications. > Does not include a handset – ideal for use on networked SigTEL systems that do not require multiple control points. > Can be connected to up to eight disabled refuge or fire telephone outstations. > Improved networking capability allow systems of up to 224 lines to be created with optional/additional desk unit control. > Supplied with a backlit LCD display. > Unique ‘auto-learn’ facility allows fast system set up. > Can be semi-flush mounted using an AFP385 bezel. > Operation can be maintained for 24 hours (standby) and 3 hours (in use) using 2 x 12V 7 Ahr batteries. > Easily interfaced to NC951 accessible toilet alarms, PDA range hearing loop systems, strobes, CCTV activation relays, etc. |
Manufacturer | C-TEC |
---|---|
MPN | ECU-8NT |
EAN | 5056059603353 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Dimensions: | W:410mm x H:250mm x D:80mm (base) W:439mm x H:274mm x D:7mm (lid) Handset protrudes 30mm beyond lid |
Approvals: | Facilitates compliance with BS5839-9 when correctly installed |
Mains supply: | 230V 50/60Hz |
Mains rated current: | 500mA |
Internal power supply: | 19V-28.5V (27V nominal). Ripple 7V max (battery fault) |
Total output current: | Limited to 1.5A @ 230V ac |
Quiescent current: | 100mA (controller with fault buzzer sounding) plus 1mA per Type A outstation and 3.2mA per Type B outstation |
Max. battery size and type: | 2 x 12V 7Ah VRLA connected in series |
No. of lines: | 8 (extra available on networked systems) |
Auxiliary relays: | Changeover fault relay (failsafe) 30V 1A max. |
Open collector outputs: | (OP1): Activates when the ECU is ringing (OP2): Activates when there is an active accessible toilet alarm call (OP3): Closes when handset is off hook |
Other outputs: | +24V. Typically used to supply power to equipment connected to the ECU's open collector outputs (relays etc) |
Engineer (AL3) functions: | Engineer mode and reset buttons (internal) |
Indicators: | 128 x 64 pixel LCD display; Disablement; System fault; PSU fault; General fault; Power on |
Controls: | Silence Buzzer. Other controls are available but not applicable as no handset is provided on this unit. |
Construction & finish: | Metal lid and base, RAL7035 grey texture |
IP Rating: | IP20 |
Operating conditions/temp: | -5oC to +40oC, max. humidity 95% |
Weight: | 3.1kg without batteries |
