SKU
XPA-CB-11170-APO
£176.70 £147.25

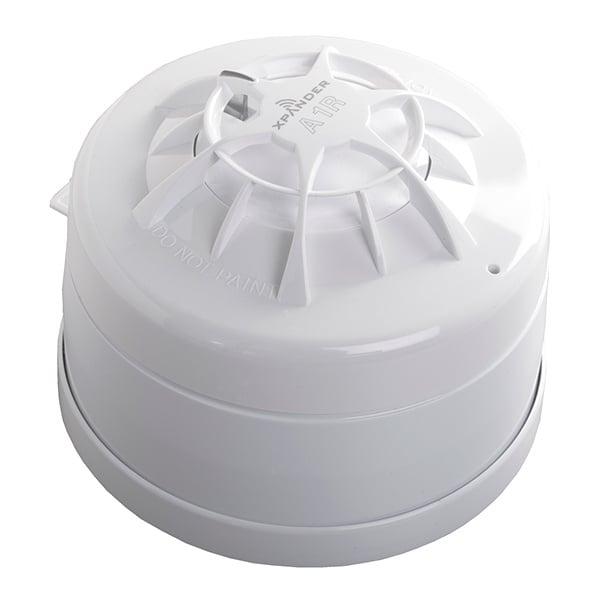

Apollo XPander A1R Heat Detector & Mounting Base - XPA-CB-11170-APO
- Buy 10 for £175.28 £146.07 each and save 1%
There are two heat detectors in the XPander range, designed to suit a wide variety of operating conditions.
A Static Heat Detector (CS) which responds only when a fixed temperature has been reached and a Rate-of-Rise Detector (A1R) which has a fixed upper limit, but in addition, measures the rate of increase in temperature.
Operation
Heat detectors have an open-web casing which allows air to flow freely across a thermistor which measures the air temperature every 2 seconds. A microprocessor stores the temperatures and compares them with pre-set values to determine whether a fixed upper limit–the alarm level–has been reached.
In the case of rate-of-rise detectors the microprocessor uses algorithms to determine how fast the temperature is increasing.
Static heat detectors respond only when a fixed temperature has been reached. Rate-of-rise detectors have a fixed upper limit but they also measure the rate of increase in temperature.
A fire might thus be detected at an earlier stage than with a static detector so that a rate-of-rise detector is to be preferred to a static heat detector unless sharp increases in temperature are part of the normal environment in the area protected by the heat detector.
Radio Communications
Fire detection systems are life-saving systems and must, therefore, be highly reliable in use. Radio communications have been developed to a point where high reliability can be guaranteed, provided that the rules for the design of radio systems and installation are carefully observed.
Radio communication technology in the detection has matured to the point where a standard has been drawn up as part of the EN54 family of standards for components of a fire detection system. The standard is EN54 Part 25.
Frequency
The frequency used by XPander is 868MHz which is the harmonised European radio frequency.
Watch the Video
Key Features |
---|
> Designed to activate upon detecting a rapid temperature increase (Rate of rise) or when a fixed upper limit of 50°C is reached > Wireless > Can be used in applications where smoke detectors are unsuitable > Ideal for environments that are dirty or smoky under normal conditions > Bi-directional (monitored) radio platform > Five-year battery life using standard AA alkaline batteries |
Manufacturer | Apollo Fire Detectors |
---|---|
MPN | XPA-CB-11170-APO |
Primary Power Source | Longlife Batteries (Lithium) |
System Type | Wireless |
Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
Sensor Type | Thermistor |
Detectable Medium | Heat |
Colour | White |
Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Manufacturer: | Apollo |
Product Code: | XPA-CB-11170 |
Supply Voltage: | Regulated 3V from radio base |
Sampling Frequency: | Once every 2 seconds |
Alarm Indicator: | Integral indicator with 360° visibility |
Material: | Detector and base moulded in white polycarbonate |
Dimensions: | 100mm (D) x 30mm (H)(105mm (D) x 80mm (H) In Base) |
Weight: | 80g (400g In Base) |
Operating Temperature: | - 10°C to + 50°C |
Humidity: | 0% to 95% relative humidity (no condensation) |
Wind Speed: | Unaffected by Wind |
Atmospheric Pressure: | Insensitive to pressure |
IP Rating to EN60529:1992: | 23D |
Electromagnetic Compatibility: | The detector meets the requirements of BS EN 50 081-1 for emissions and BS EN50 130-4 for susceptibility. CE marked. |
