SKU
55000-885APO
£37.90 £31.58

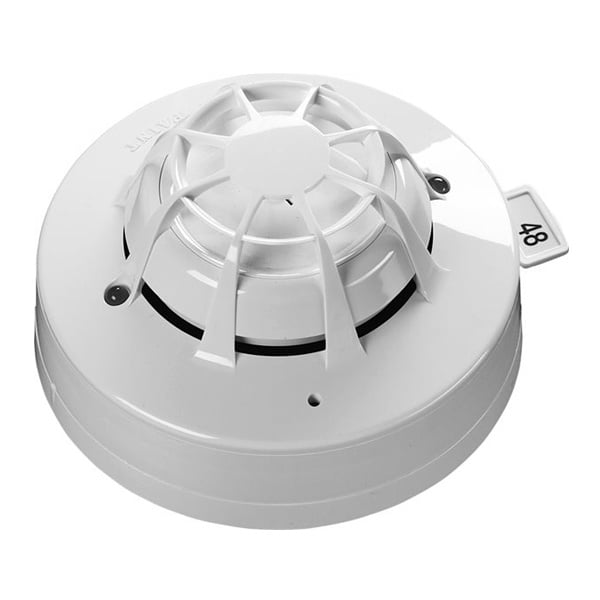

Apollo XP95 Optical Smoke & Heat Multisensor Detector - 55000-885APO
- Buy 10 for £37.58 £31.32 each and save 1%
The XP95 Multisensor Detector contains an optical smoke sensor and a thermistor temperature sensor whose outputs are combined to give the final analogue value.
Operation
The multisensor construction is similar to that of the optical detector but uses a different lid and optical mouldings to accommodate the thermistor temperature sensor. The sectional view (Fig.15) shows the arrangement of the optical chamber and thermistor.
The signals from the optical smoke sensing element and the temperature sensor are independent, and represent the smoke level and the air temperature respectively in the vicinity of the detector.
The detector’s microcontroller processes the two signals. The temperature signal processing extracts only rate of rise information for combination with the optical signal. The detector will not respond to a slow temperature increase - even if the temperature reaches a high level. A large sudden change in temperature can, however, cause an alarm without the presence of smoke, if sustained for 20 seconds.
The processing algorithms in the multisensor incorporate drift compensation. The control panel must not have a drift compensation algorithm enabled.
The sensitivity of the detector is considered the optimum for most general applications since it offers good response to both smouldering and flaming fires.
Note: in-situ testing of the multisensor should be carried out as for smoke detectors.
Watch the Video
Key Features |
---|
> Sensitive to a wide range of fires > Well-suited to environments such as hotel bedrooms > Unaffected by wind or atmospheric pressure > Mounting Bases are sold separately (click here to see compatible bases) |
Manufacturer | Apollo Fire Detectors |
---|---|
MPN | 55000-885APO |
Primary Power Source | Mains Powered (230V) |
System Type | Addressable |
Protocol Compatibility | Apollo XP95, Apollo Discovery |
Sensor Type | Combined Optical and Thermistor |
Detectable Medium | Smoke, Heat |
Colour | White |
Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Specifications are given at 23°C and 50% relative humidity unless stated otherwise.
Product Code: | 55000-885APO |
Detector Principle: | Smoke: Photoelectric detection of light scattered by smoke particles - Heat: Temperature-sensitive resistance |
Supply Wiring: | Two-wire supply, polarity insensitive |
Operating Voltage: | 17-28V DC |
Communications Protocol: | Apollo XP95 5-9V peak to peak |
Quiescent Current: | 500μA average - 750μA peak |
Power-up Surge Current: | 1mA |
Maximum Power-up Time: | 10s |
Alarm LED Current: | 3.5mA |
Remote LED Current: | 4mA at 5V |
Clean Air Analogue Value: | 23 +4/-0 |
Alarm Level Analogue Value: | 55 |
Alarm Indicator: | 2 colourless Light Emitting Diodes (LEDs); illuminated red in alarm - Optional remote LED |
Temperature Range: | Max. continuous operating: +60°C; Min. continuous operating: 0°C - Min. operating (no condensation/icing: -20°C - Storage: -30°C to +80°C. |
Humidity: (No Condensation) | 0 to 95% relative humidity |
Effect of Temperature on Optical Detector: | Less than 15% change in sensitivity over rated range. Slow changes in ambient conditions will automatically be compensated and will not affect sensitivity |
Effect of Atmospheric Pressure on Optical Sensor: | None |
Effect of Wind on Optical Sensor: | None |
IP Rating: | 23D |
Dimensions: (D x H) | 100 x 50; 100 x 58 (In Base) |
Weight: | 105g (160g for detector in base) |
Materials: | Housing: White polycarbonate V-0 rated to UL94 - Terminals: Nickel plated stainless steel |
Sensor: | Silicon PIN photo-diode |
Emitter: | GaAs infra-red light emitting diode |
Sampling Frequency: | 1 per second |
