SKU
RW1000-700APO
£181.56 £151.30

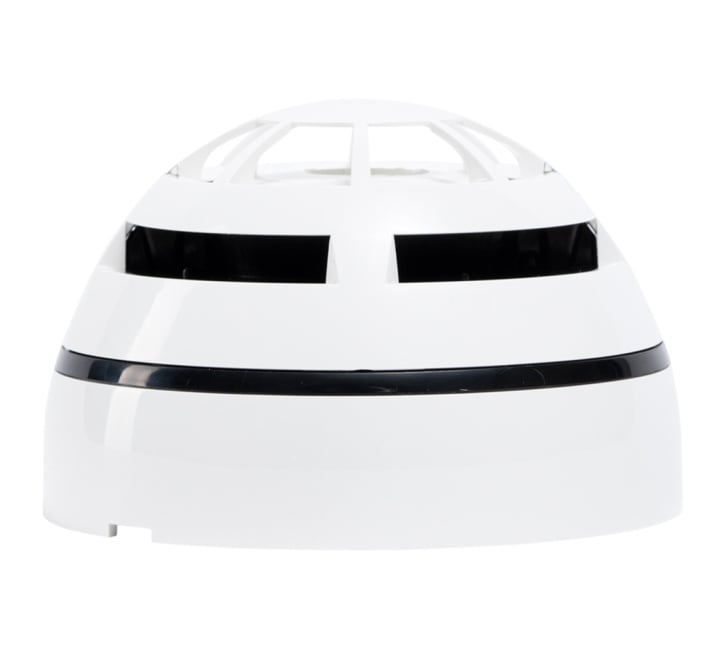

Apollo REACH Wireless Multi-Sensor Detector (Optical/Heat) - RW1000-700APO
- Buy 10 for £180.11 £150.09 each and save 1%
The Apollo REACH RW1000-700APO is a wireless addressable dual-optical and heat detection multisensor detector, offering both technologies for improved performance and high levels of false-alarm rejection.
Operating Principles
The REACH Multisensor Detector features a dual-chamber optical smoke sensor and rate-of-rise (A1R) heat detector. Alarm is triggered based on an algorithm that considers both sensor readings.
Status LED
It also includes a 360° LED indicator which illuminates red or green to indicate status conditions.
Device Addressing
Device addressing is handled by the REACH Wireless Loop-Interface device (RW1700-030APO).
Devices are soft-addressed automatically when pairing with the Loop Interface and can be changed manually. Hard-addressing using Apollo XPERT cards are not supported.
Communication
REACH Wireless Devices use ‘radio-frequency’ wireless communication to connect to the Loop-Interface.
The Loop-Interface (RW1700-030APO) translates the wireless communication into wired Apollo protocol communication, with each device addressable individually by the fire panel. See datasheets for the Loop-Interface for more information.
Maintenance and Service
Maintenance must be performed in accordance with all applicable standards. Clean the detector externally using a soft damp cloth. For full cleaning and recalibration detectors should be returned to Apollo Fire Detectors.
Tamper detection
REACH Wireless devices contain an anti-tamper mechanism. In the event of removal from its base, it sends a tamper
detection message to the Loop-Interface.
Tampering detection is not signalled visually by the device LED.
Base Compatibility
This device is supplied with a standard wireless base and is compatible with the following AV bases:
Part Number | Product Name |
RW1300-110APO | REACH Wireless Sounder Base |
RW1300-210APO | REACH Wireless Sounder VAD Base (White Flash) (C-3-15) |
RW1300-211APO | REACH Wireless Sounder VAD Base (Red Flash) (C-3-10) |
Batteries
REACH Wireless devices are supplied with two CR123 batteries, battery A and B. The device switches periodically
between the two batteries on a controlled sequence. For correct operation of the device, both batteries are required
with adequate capacity reserves.
When battery A reaches a low power threshold, it will trigger a fault. This fault requires both batteries to be replaced in every instance as both batteries should be discharging equally.
When one (or both) batteries lack power, the Loop-Interface receives a low battery message and will signal this event on its in-built display, as well as relay the low battery message to the fire control panel. The battery fault will also be signalled by the device itself through its LED indicators if programmed (see table 1).
Key Features |
---|
> Twin alarm, bi-colour LEDs for 360° visibility > Advanced dual-optical chamber design > Advanced drift compensation > Heat detection - rate-of-rise (A1R) and static temperature (BS) > Bi-directional wireless communication > Dual channel redundancy > 10 year battery life > 5 year product warranty |
Manufacturer | Apollo Fire Detectors |
---|---|
MPN | RW1000-700APO |
Primary Power Source | Longlife Batteries (Lithium) |
System Type | Wireless |
Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
Sensor Type | Combined Optical and Thermistor |
Detectable Medium | Smoke, Heat |
Colour | White |
Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Part No | RW1000-700APO |
Detection principle | Photo-electric detection of light scattered in a forward direction by smoke particles Single NTC Thermistor |
Communication Range between Loop-Interface and Devices | 100m (in open space) |
Field Device Radio Frequency Channel Pairs | 22 pairs |
Status LED | Green and Red |
Radiated Power | 14 dBm (25 mW) |
Battery Type | 2x VARTA CR123A Lithium 3 V, 1250mAh typical |
Battery Lifespan | 10 years in normal operation with good signal strength (no dropped messages) |
Operating Temperature | -10°C to +55°C |
Maximum Relative Humidity (non-condensing) | 95% |
IP Rating | 40 |
Standards and approvals | EN54-7, EN54-5 Class P, EN54-25 |
Dimensions | 110 mm diameter x 70 mm height |
Weight (including base and batteries) | 190 g |
Digital Communication | Apollo protocol compatibility is handled via the Loop-Interface device, RW1700-030APO. |
