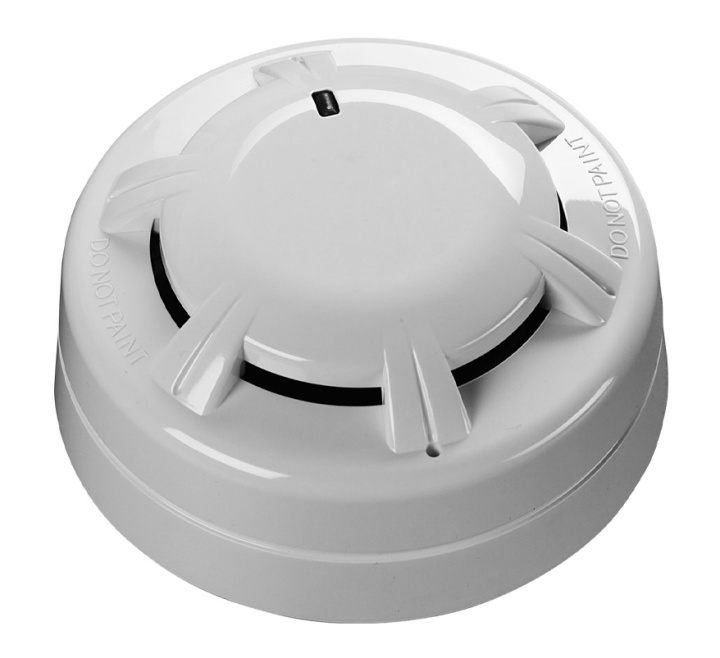

Apollo Orbis Marine Optical Smoke Detector with Flashing LED (ORB-OP-42003-MAR)
SKU
ORB-OP-42003-MAR
£26.92 £22.43
Apollo Orbis Marine Optical Smoke Detector with Flashing LED (ORB-OP-42003-MAR)
- Buy 10 for £26.70 £22.25 each and save 1%
The Apollo Orbis Marine Optical Smoke Detector operates on the well-established light scatter principle. However, the sensing technology is radically different in design from previous optical detectors and significantly reduces false alarms.
Optical smoke detectors have always been recognised as good detectors for general use. They are regarded as particularly suitable for smouldering fires and escape routes.
The performance of Orbis Marine optical detectors is good in black as well as in white smoke. In this respect Orbis detectors are different from traditional optical smoke detectors which perform far better in white smoke than in black.
Orbis Marine Optical Smoke Detectors are also designed to reduce significantly the incidence of false alarms through over-sensitivity to transient phenomena.
Orbis Marine Optical Smoke Detectors are recommended for use as general purpose smoke detectors for early warning of fires in most areas.
| Key Features |
|---|
| > Responds well to fast-burning, flaming fires > Reduced false alarms > Increased reliability of detection > Sensing chamber keeps out dust and other airborne contaminants > Operates over a broad range of voltages at extremes of temperature > The LED on this variant flashes / pulses when in quiescent state > Mounting base not included (sold separately) |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | ORB-OP-42003-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product code: | ORB-OP-42003-MAR |
| Description: | Apollo Orbis Marine Optical Smoke Detector with Flashing LED |
| Dimensions: | Diameter:97mm x D:31mm |
| Applications: | Bedrooms, Escape routes, Marine |
| Fire type: | Slow burning, smouldering fires |
| Materials: | Housing: Polycarbonate |
| Colour: | White |
| Detection principle: | Photo-electric light scattering |
| Sensor configuration: | Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier |
| Approvals: | CRS, LR, DNV.GL, CCS, BV, ABS, MED |
| Chamber type: | Chevron |
| Max. power-up time: | <20 seconds |
| Quiescent current: | 95μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Sampling frequency: | Once every 4 seconds |
| Min. 'detector active' voltage: | 6V |
| Holding voltage: | 5 to 33V |
| Max. voltage to light alarm LED: | 5V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 600Ω |
| Humidity: | 0 - 98% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Storage temperature: | -40 to 70°C |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 75g |
