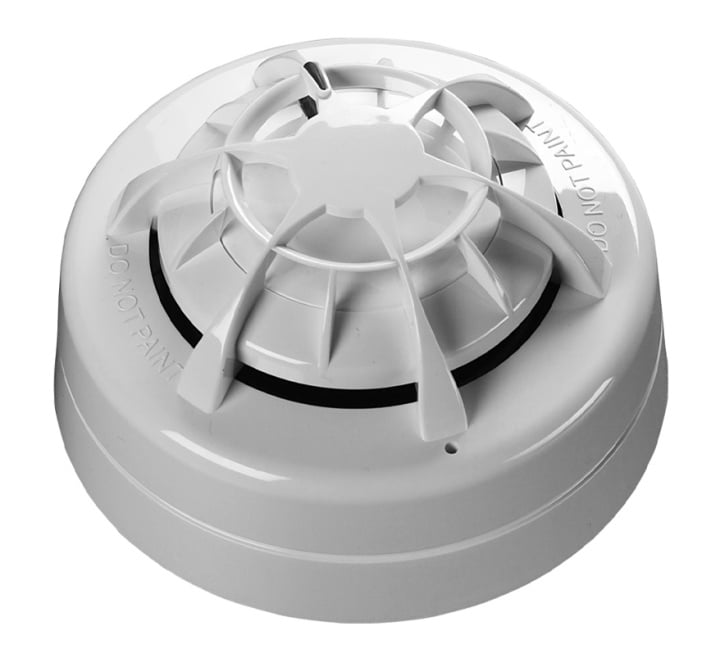

Apollo Orbis Marine Multi-Sensor Detector (Optical/Heat) with Flashing LED (ORB-OH-43003-MAR)
SKU
ORB-OH-43003-MAR
£32.76 £27.30
Apollo Orbis Marine Multi-Sensor Detector (Optical/Heat) with Flashing LED (ORB-OH-43003-MAR)
- Buy 10 for £32.50 £27.08 each and save 1%
The Apollo Orbis Marine Multisensor Detector benefits from the same false alarm reduction technology as the optical detector, with the addition of a heat sensing element.
The Orbis Marine Optical /Heat Multisensor Detector is recognised as a good detector for general use but is additionally more sensitive to fast burning, flaming fires - including liquid fires - than optical detectors.
They can be readily used instead of optical detectors but should be used as the detector of choice for areas where the fire risk is likely to include heat at an early stage in the development of the fire.
The Multisensor detector has two sensors, one for smoke and one for heat with the alarm decision derived from either sensor or combination of both.
The integral LED on this variant flashes when in quiescent state.
| Key Features |
|---|
| > Responds well to fastburning, flaming fires > Reduced false alarms > Increased reliability of detection > Sensing chamber keeps out dust and other airborne contaminants > Operates over a broad range of voltages at extremes of temperature > The integral LED on this variant flashes when in quiescent state |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | ORB-OH-43003-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product code: | ORB-OH-43003-MAR |
| Description: | Apollo Orbis Marine Multi-Sensor Detector (Optical/Heat) with Flashing LED |
| Dimensions: | Diameter:97mm x D:36mm |
| Applications: | Bedrooms, Dusty environments, Marine |
| Fire type: | Fast and slow burning fires |
| Colour: | White |
| Sensor configuration: | Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier |
| Detection principle: | Photo-electric light scattering |
| Chamber type: | Chevron |
| Materials housing: | Polycarbonate |
| Approvals: | BV, LR, DNV.GL, CCS, ABS, MED |
| Quiescent current: | 95μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Min. 'detector active' voltage: | 6V |
| Holding voltage: | 5 to 33V |
| Min. voltage to light alarm LED: | 5V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 600Ω |
| Sampling frequency: | Once every 4 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| Operating temperature: | -40 to 70°C |
| Storage temperature: | -40 to 70°C |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 80g |
