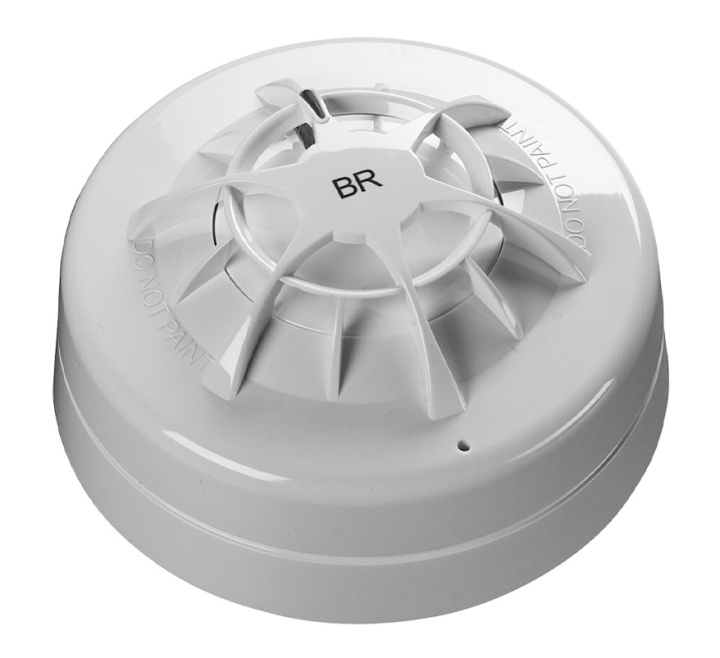

Apollo Orbis Marine BR Heat Detector with Flashing LED (ORB-HT-41015-MAR)
SKU
ORB-HT-41015-MAR
£19.90 £16.58
Apollo Orbis Marine BR Heat Detector with Flashing LED (ORB-HT-41015-MAR)
- Buy 10 for £19.73 £16.44 each and save 1%
The Apollo Orbis Marine BR Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature. The integral LED flashes when in quiescent state on this variant.
| Key Features |
|---|
| > Can be used for applications where smoke detectors are unsuitable > Ideal in environments that are dirty or smoky under normal conditions > Red flashing LED at StartUp confirms the device is operating. > SensAlert®, yellow flashing LED indicates faulty operation > FasTest® takes just four seconds to test and confirm detectors are functioning correctly > The integral LED flashes when in quiescent state on this variant |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | ORB-HT-41015-MAR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product code: | ORB-HT-41015-MAR |
| Description: | Apollo Orbis Marine BR Heat Detector with Flashing LED |
| Dimensions: | Diameter:97mm x D:36mm |
| Applications: | Dusty environments, Marine |
| Heat classification: | BR |
| Materials: | Housing: Polycarbonate |
| Approvals: | BV, DNV.GL, CCS, LR, ABS, MED |
| Colour: | White |
| Max. power-up time: | <20 seconds |
| Quiescent current: | 95μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Min. 'detector active' voltage: | 6V |
| Holding voltage: | 5 to 33V |
| Min. voltage to light alarm LED: | 5V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 600Ω |
| Sampling frequency: | Once every 4 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| IP Rating: | IP23D |
| Warranty: | 10 year |
| Weight: | 70g |
