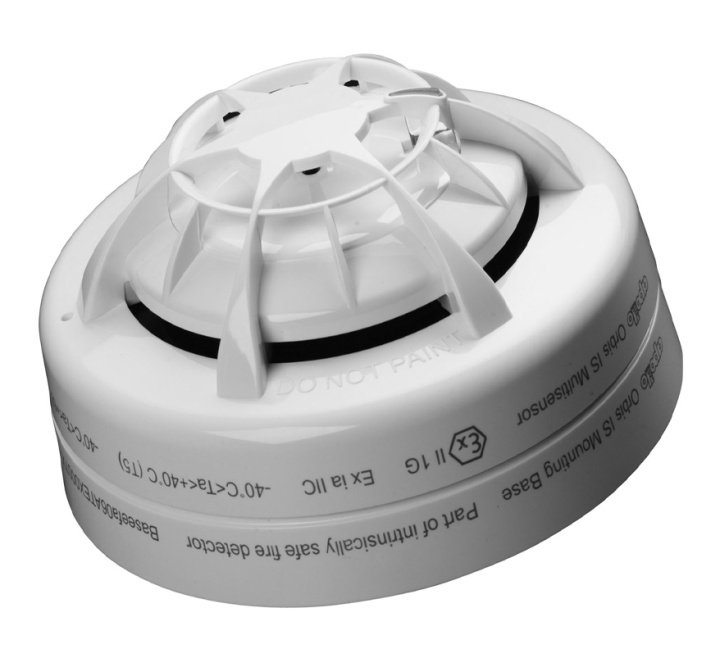

Apollo Orbis I.S. Multi-Sensor Detector (Optical/Heat) with Flashing LED (ORB-OH-53028-APO)
SKU
ORB-OH-53028-APO
£97.12 £80.93
Apollo Orbis I.S. Multi-Sensor Detector (Optical/Heat) with Flashing LED (ORB-OH-53028-APO)
- Buy 10 for £96.34 £80.28 each and save 1%
The Apollo Orbis I.S. Multi-Sensor Detector benefits from the same false alarm technology as the Optical Smoke Detector with the addition of a heat sensing element.
The Orbis Intrinsically Safe (I.S.) Optical/Heat Multisensor Detector is recognised as a good detector for general use but is additionally more sensitive to fast burning, flaming fires - including liquid fires - than optical detectors.
Orbis I.S. Optical/Heat Multisensor Detectors can be readily used instead of optical detectors but should be used as the detector of choice for areas where the fire risk is likely to include heat at an early stage in the development of the fire.
The Multisensor detector has two sensors, one for smoke and one for heat with the alarm decision derived from either sensor or combination of both.
As with all the Orbis I.S. range of detectors the increased reliability of detection is combined with high immunity to false alarms.
The integral LED on this variant flashes when in quiescent state.
| Key Features |
|---|
| > Reduces false alarms > Sensitive to fast burning, flaming fires > Improved sensitivity to black smoke > Compensation for slow changes in sensitivity > Algorithms for reliability of alarm > The integral LED on this variant flashes when in quiescent state |
| Manufacturer | Apollo Fire Detectors |
|---|---|
| MPN | ORB-OH-53028-APO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product code: | ORB-OH-53028-APO |
| Description: | Apollo Orbis I.S. Multi-Sensor Detector (Optical/Heat) - Flashing LED |
| Dimensions: | Diameter:100mm x L:50mm (Product height without base 50mm) |
| Applications: | Clean rooms, Dusty environments, Hazardous areas, Offshore platforms, Refineries, Small to medium buildings, Warehouses |
| Fire type: | Fast and slow burning fires |
| Chamber type: | Chevron |
| Colour: | White |
| Materials housing: | Polycarbonate |
| Detection principle: | Photo-electric light scattering Temperature sensitive resistance |
| Approvals: | BV, LR, LPCB, IECEx, DNV.GL, BASEEFA, BOSEC, CCS, CPR, PESO (CCoE), ABS, MED |
| Min. 'detector active' voltage: | 12V |
| Holding voltage (min): | 5V |
| Min. voltage to light alarm LED: | 6V |
| Alarm: | Reset voltage: <1V Reset time: 1s Load: 325Ω in series with a 1.0V drop |
| Max. power-up time: | <20 seconds |
| Quiescent current: | 85μA (tested @ 24V dc) |
| Polarity: | L1 & L2 are polarity sensitive |
| Sampling frequency: | Once every 4 seconds |
| Humidity: | 0 - 98% (no condensation or icing) |
| IP Rating: | IP23D |
| Storage temperature: | -40 to 70°C |
| Warranty: | 10 year |
| Weight: | 80g |
