SKU
A5Q00004117
£81.77 £68.14

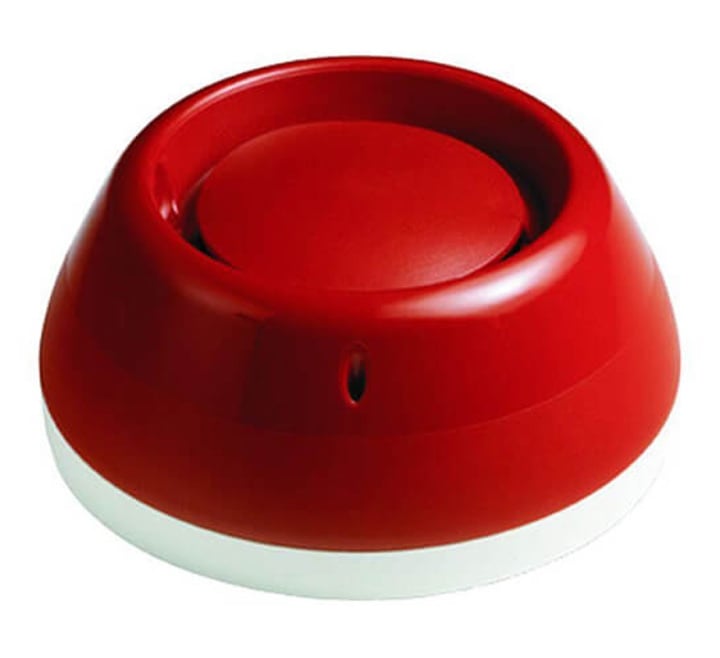

Siemens Alarm Sounder (Red) 80-99 dBA (Requires Base FDB222)
- Buy 10 for £80.51 £67.09 each and save 2%
- Buy 20 for £79.25 £66.04 each and save 3%
- Buy 50 for £78.00 £65.00 each and save 5%
Siemens Alarm Sounder (Red) 80-99 dBA (Requires Base FDB222).
Loud alarming in case of a fire alarm, clearly recognizable as danger signal. To be mounted on the wall or on the ceiling along escape routes, corridors, staircases. Only applicable with addressable detector base.
Power is supplied via FDnet/C-NET, no auxiliary power supply required. Monitoring of device status.
For recess supply line. For surface supply line up to cable 6 mm in diameter with base FDB221, otherwise use the base attachment or the base attachment wet. The base must be ordered separately.
Key Features |
---|
> Red > 11 tones to choose from > 2 programmable alarm levels > Sound level up to 99 dB(A); can be set on three levels > Compatible with addressed detector bases FDB221 and FDB222 > Option of using base accessories and sealing element > Connection for 2 external alarm indicators > Supply and communication via C-NET |
Manufacturer | Siemens |
---|---|
MPN | FDS221-R |
Write Your Own Review
![Loading...](https://www.safefiredirect.co.uk/static/version1719466362/frontend/Alothemes/electro2s/en_GB/MageArray_ProductQuestions/images/loader.gif)
Sort By:
No questions yet. Be the first to ask the question!
Product: | Siemens FDS221-R Alarm Sounder |
Product code: | A5Q00004117 |
Dimensions: | Ø:100mm x D:43mm |
Standard: | EN 54-3 , EN 54-17 |
Operating voltage: | DC 12 - 33V |
Operating current: | 3.5mA (sound activated) |
Quiescent current: | 250 μA |
Sound intensity: | 80 - 99 dB(A) |
Operating temperature: | -25 to +70 °C |
Storage temperature: | -30 to +75 °C |
Ext. alarm indicator: | 2 |
Terminals: | According to detector base |
Protection category: | IP40; IP43 with base and base attachement; IP44 with base and sealing element; IP54 with base attachment wet |
Relative humidity: | ≤95 % rel. |
No. of sounds: | 11 |
Communication protocol: | FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720 |
Colour: | Flame Red, ~RAL 3000 |
