SKU
Ei3000MRF
£58.87 £49.06

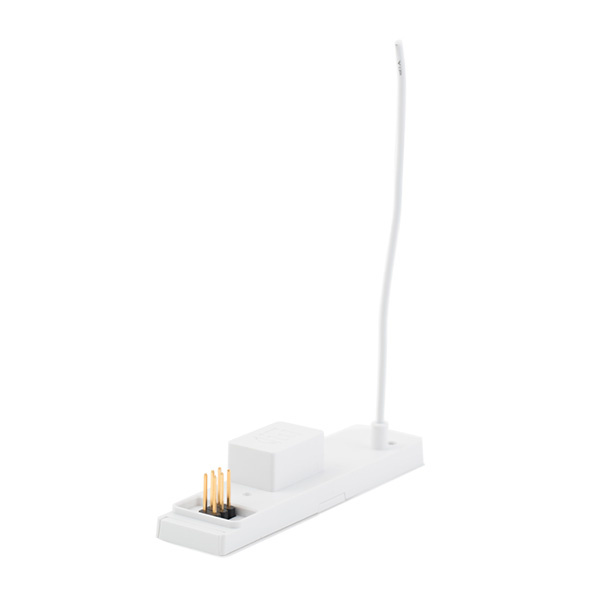

Aico Ei3000MRF SmartLINK Module - For 3000 Series Alarms
- Buy 10 for £57.47 £47.89 each and save 2%
The Ei3000MRF is an optional add-on for use with the Ei3000 series of alarms. It enables wireless interconnection with up to 12 other SmartLINK / RadioLINK compatible devices and supports hybrid communication allowing for devices to be hardwired or wirelessly interlinked.
This module simply plugs into the designated slot on the back of all Ei3000 series alarm heads. No external parts are left exposed as the small antenna is fully enclosed within the alarm unit once fitted. Once the alarm is powered up, the RF LED on the side of the alarm device will flash red, blue and green which indicates that the module is correctly fitted and operating.
The Ei3000MRF is a short range device which uses a transceiver to receive, transmit and repeat the RadioLINK RF communication protocol. This ensures a robust "mesh" of RF signals and reliable paths of communication. The integrated house coding feature restricts the RF communication to designated RF devices only which reduces interference / activation with other nearby RF systems.
The Remote Alarm Learn entry feature enables the installer to re-instate the full RF system house code from a single device. Additional devices can then be added to the system and coded accordingly.
Simply fit this module into any Ei3000 series alarm for wireless interconnection with other compatible devices, data extraction and real-time notifications of alarm events and activations via the SmarkLINK Gateway and Portal.
Key Features |
---|
> Powered directly via alarm head > Add this module to any Ei3000 series alarm to enable SmartLINK interconnection and device data extraction > Compatible with other Aico wireless products (e.g. RadioLINK range) > Allows wireless interconnection with up to 12 alarms and devices > Configurable notifications in real-time > Forecast alarm replacements and maintenance > Enables full visibility of your connected SmartLINK system > Remote Alarm Learn entry > Receives, transmits and repeats RF specific data > Unique house coding feature > 5 year manufacturer's warranty |
Manufacturer | Aico |
---|---|
MPN | Ei3000MRF |
EAN | 5099383006605 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Supply Voltage: | Powered from the alarm device |
Operating Temperature: | 0 to 40 degrees celcius |
Humidity Range: | 15% to 95% RH (non-condensing) |
RF Frequency: | 868.499Mhz RadioLINK protocol (1% duty cycle) |
RF Power: | +10dBm |
RF Protocol: | Proprietary RF protocol using multi-path, multi-repeater mesh architecture |
RF Range: | >100 meters in free air 30 meters in standard property |
Indicator LED's: | Blue, Green & Red |
Maximum System Size: | Up to 12 compatible devices |
Material: | HIP UL 94 V0 Flame Retardant |
Dimensions: | 80mm x 18mm x 16mm |
Weight: | 10g (Boxed 62g) |
Warranty: | 5 years |
Approvals: | CE Marked Compliant with Radio Equipment Directive 2014/53/EU |
