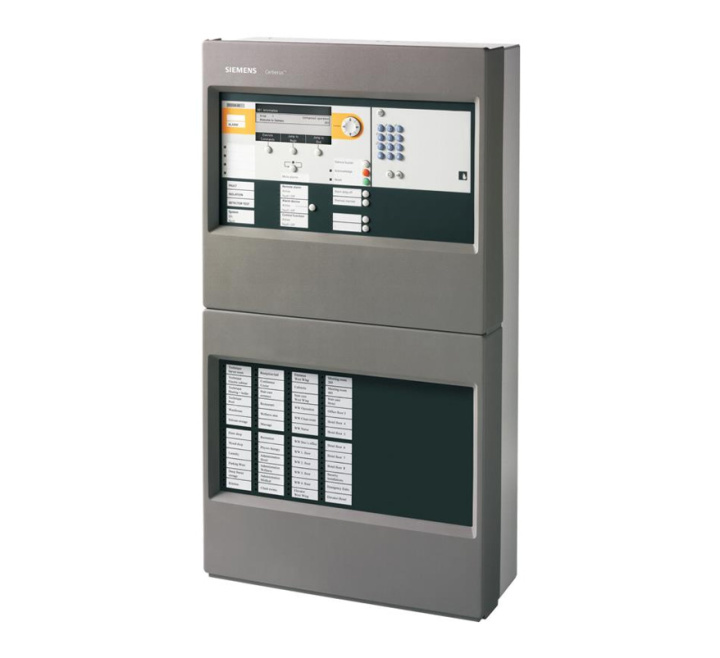

Siemens FC724-ZE Cerberus PRO 4 Loop Fire Panel in Comfort Housing (c/w 48 Zone LEDs)

The Siemens FC724-ZE (4-loop, expandable to 8) is a compact fire control panel with an integrated operating unit that can process signals from Cerberus™ PRO devices of up to 504 addresses. The fire control panel can be used as a stand-alone version or networked and can be programmed with a user-friendly Cerberus-Engineering-Tool to create a system with great versatility. Up to 32 fire control panels and fire terminals can be connected in a single cluster (C-WEB/SAFEDLINK network), or up to 16 panels when the cluster is connected to a danger management system. Using a fiber-optic backbone (C-WEB/LAN) up to 14 of these clusters with up to 16 panels each can be networked. This topology enables the construction of an EN 54-conform network with up to 64 fire control panels and fire terminals. All detector lines are monitored for ground faults. Adaptation of the user text directly on the terminal or with the Cerberus-Engineering-Tool. Up to 2000 events can be stored according to various criteria. Automatic summer/winter time change. Detection and automatic read-in (auto configuration) of all C-NET devices, providing immediate simple operation. Stored data can be uploaded via Cerberus-Remote access. The FC724-ZE is ideally suited for large-sized applications, e.g. in industrial plants, regional banks, office complexes, etc. The FC724-ZE with flexible cross linking possibilities can also be used for extensive systems. The expansion and accessories must be ordered separately.
